CHUWELL Full Size Murphy Bed with Charging Station & Drawer Instruction Manual

1. Σημαντικές πληροφορίες για την ασφάλεια

Διαβάστε και κατανοήστε όλες τις οδηγίες πριν από τη συναρμολόγηση και τη χρήση. Φυλάξτε αυτό το εγχειρίδιο για μελλοντική αναφορά.

• Always use both hands to lower the bed to prevent injury.
• Keep children and pets away from the bed when in use or during transformation.
• Βεβαιωθείτε ότι όλα τα εξαρτήματα είναι καλά σφιγμένα πριν από τη χρήση. Ελέγχετε περιοδικά και σφίγγετε ξανά, όπως απαιτείται.
• Do not exceed the recommended weight capacity for the bed.
• Αυτό το προϊόν έχει σχεδιαστεί μόνο για χρήση σε εσωτερικούς χώρους.
• Mattress is ΔΕΝ included. Use a foldable mattress of appropriate size for optimal function.

2. Το προϊόν τελείωσεview

The CHUWELL Full Size Murphy Bed is a versatile furniture piece designed to save space. It transforms from a stylish cabinet into a comfortable full-size bed, featuring a built-in charging station and ample storage drawers. Its farmhouse design complements various room decors.

Image: The CHUWELL Full Size Murphy Bed in its deployed state within a bedroom, showcasing its farmhouse style and integrated headboard.

3. Περιεχόμενα συσκευασίας

Your CHUWELL Murphy Bed will arrive in two separate boxes. Please ensure all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

• Main Cabinet Frame Components
• Bed Frame Components (including slats and support beams)
• Drawer Components and Hardware
• Μονάδα σταθμού φόρτισης
• Εξαρτήματα συναρμολόγησης (βίδες, μπουλόνια, κλειδαριές έκκεντρου κ.λπ.)
• 12 PCS Directional Wheels
• Εγχειρίδιο οδηγιών συναρμολόγησης

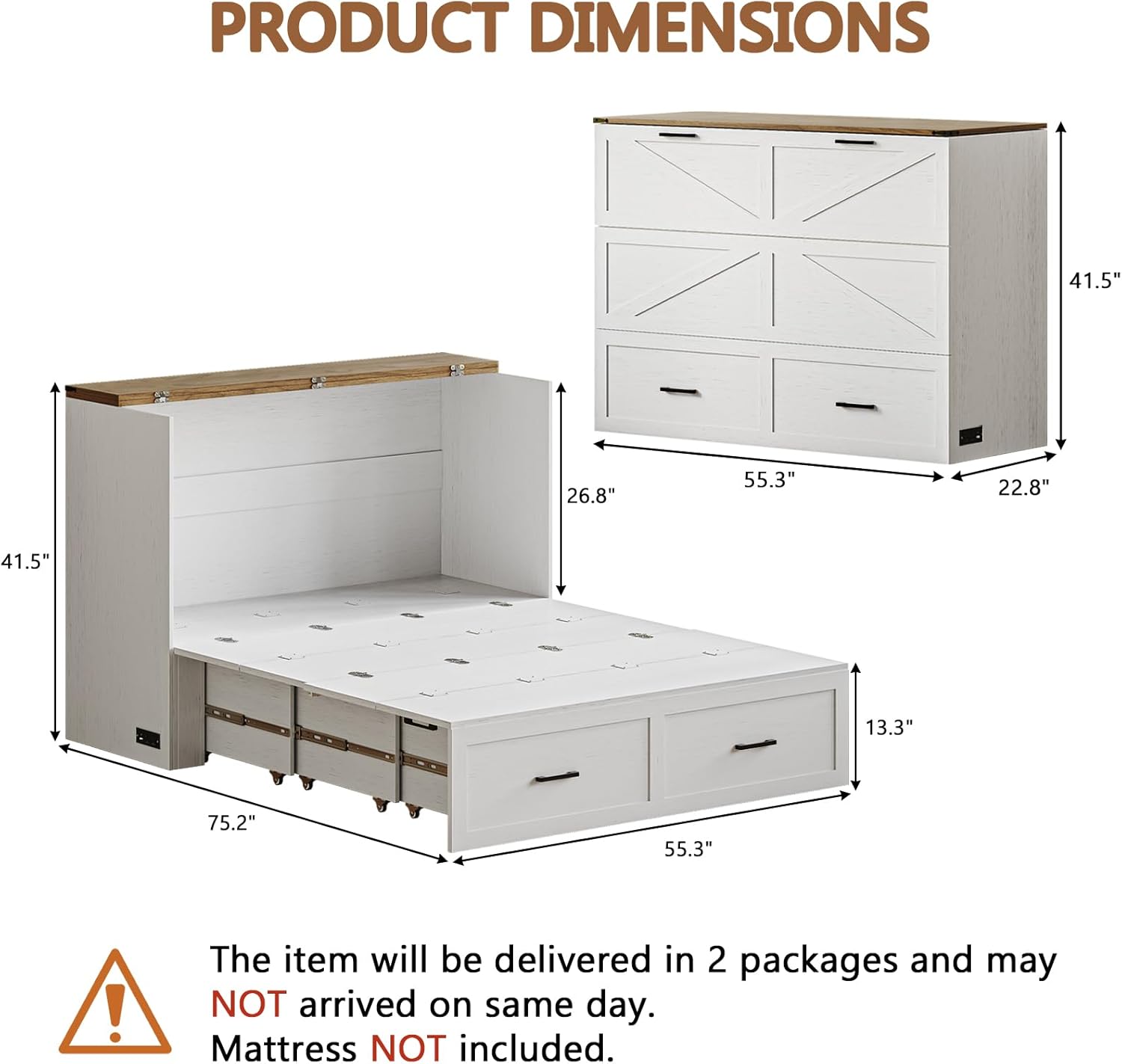

Image: Diagram illustrating the dimensions of the CHUWELL Murphy Bed in both its compact cabinet form and its extended bed form. Note indicates delivery in 2 packages and mattress not included.

4. Οδηγίες συναρμολόγησης

Assembly requires two adults. Follow the detailed, step-by-step instructions provided in the separate assembly manual included with your product. All hardware is clearly labeled to simplify the process.

Βήματα Γενικής Συνέλευσης:

1. Αποσυσκευασία και αναγνώριση εξαρτημάτων: Carefully unbox all components and lay them out. Match each part to the provided parts list in the assembly manual.
2. Assemble the Main Cabinet: Follow the instructions to construct the outer cabinet frame. Ensure all connections are secure.
3. Install Drawer Slides and Wheels: Attach the drawer slides to the cabinet and assemble the bottom storage drawer, including the 12 directional wheels for mobility.
4. Integrate the Bed Frame: Install the folding bed frame mechanism into the cabinet. This includes the premium smooth rails for easy pull-out.
5. Εγκατάσταση σταθμού φόρτισης: Secure the charging station unit into its designated slot.
6. Τελικοί έλεγχοι: Verify all screws and bolts are tightened. Test the bed transformation mechanism for smooth operation.

Image: A visual guide demonstrating the four main steps to transform the CHUWELL Murphy Bed from its compact cabinet form to a full-size bed.

5. Οδηγίες λειτουργίας

5.1 Transforming the Bed (Cabinet to Bed)

1. Βήμα 1: Ensure the area in front of the cabinet is clear of obstructions.
2. Βήμα 2: Open the bottom storage drawer. This drawer is part of the bed's base.
3. Βήμα 3: Grasp the handle on the front panel of the bed frame. Using both hands, gently pull the bed frame outwards and downwards. The premium smooth rails will guide the bed out.
4. Βήμα 4: Continue to unfold the bed board until it is fully extended and flat. Ensure the support legs are properly deployed and locked into place for stability.
5. Βήμα 5: Place your foldable mattress (not included) onto the bed frame.

To transform the bed back into a cabinet, reverse these steps. Remove the mattress, fold the bed board upwards, and gently push the bed frame back into the cabinet until it locks securely. Close the bottom drawer.

Εικόνα: Ένα δίπλα-δίπλα view illustrating the transformation of the unit from a full-size bed to a compact cabinet, highlighting its space-saving design.

5.2 Using the Built-in Charging Station

Ο ενσωματωμένος σταθμός φόρτισης παρέχει εύκολη πρόσβαση στην τροφοδοσία των συσκευών σας.

• The station includes 2 πρίζες AC (120V/12A), 1 θύρα USB (5V/2A), και 1 θύρα Type-C (5V/2A).
• A 4.9-foot power cord is provided to connect the unit to a wall outlet.
• Plug your electronic devices directly into the appropriate ports for charging.
• Ensure the power cord is not pinched or damaged during bed transformation.

Εικόνα: Λεπτομερής view of the built-in charging station, showing two AC outlets, one USB port, and one Type-C port, along with its power specifications.

5.3 Αξιοποίηση των δυνατοτήτων αποθήκευσης

The Murphy bed offers multiple storage solutions:

• Μεγάλο συρτάρι αποθήκευσης: The oversized bottom drawer provides ample space for bedding, linens, or other items.
• Hidden Mattress Storage: A dedicated compartment is designed to neatly store a foldable mattress when the bed is in its cabinet form.
• Ευρύχωρο τραπέζι: When in cabinet mode, the top surface functions as a spacious tabletop for decor, books, or other essentials.

Image: An illustration of the CHUWELL Murphy Bed's storage capabilities, including the large bottom drawer, the hidden compartment for a foldable mattress, and the functional tabletop.

Εικόνα: Κοντινό πλάνο view highlighting the 12 directional wheels integrated into the bed frame, designed for quiet and smooth movement.

6. Συντήρηση

• Καθάρισμα: Σκουπίστε τις επιφάνειες με ένα μαλακό, δamp πανί. Αποφύγετε σκληρές χημικές ουσίες ή λειαντικά καθαριστικά που μπορεί να προκαλέσουν ζημιά στο φινίρισμα του επεξεργασμένου ξύλου.
• Έλεγχος υλικού: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten as needed to maintain stability and safety.
• Φροντίδα μηχανισμού: Keep the bed transformation rails and wheels free of dust and debris to ensure smooth operation. Lubricate moving parts if necessary with a silicone-based lubricant.
• Ηλεκτρικά εξαρτήματα: Ensure the charging station and its power cord are free from damage. Do not attempt to repair electrical components yourself.

7. Αντιμετώπιση Προβλημάτων

8. Προδιαγραφές προϊόντος

9. Υποστήριξη πελατών και εγγύηση

For any questions, missing parts, or assistance with assembly or operation, please contact CHUWELL customer support. Refer to your purchase documentation for specific warranty details and contact information.

We are committed to ensuring your satisfaction with our product.
