Amicool Cobocen Portable Blender Model A9 User Manual

1. Εισαγωγή

Thank you for choosing the Amicool Cobocen Portable Blender Model A9. This personal mini blender is designed for convenience and efficiency, allowing you to prepare fresh smoothies, shakes, and juices anywhere. Please read this manual carefully before use to ensure safe and optimal performance.

2. Πληροφορίες Ασφάλειας

Για να αποφύγετε τραυματισμούς ή ζημιές, ακολουθείτε πάντα αυτές τις βασικές προφυλάξεις ασφαλείας:

• Ensure the red arrow on the cup aligns with the switch on the base before operating. The magnetic safety switch prevents operation if not correctly assembled.
• Do not immerse the blender base in water for extended periods, despite its IP67 waterproof rating. The charging port is waterproof, but prolonged submersion is not recommended.
• Keep hands and utensils out of the blender jar while blending to prevent severe injury.
• Do not overfill the blender. Fill ingredients up to 80% of the cup capacity.
• Avoid blending extremely hot liquids, as pressure buildup can cause the lid to eject.
• Να φυλάσσεται μακριά από παιδιά.
• Μη λειτουργείτε το μπλέντερ όταν είναι άδειο.
• This appliance is equipped with overheating prevention. If the motor stops due to overheating, allow it to cool down before resuming use.

3. Συστατικά προϊόντος

The Amicool Cobocen Portable Blender includes the following parts:

• Βάση μπλέντερ με μοτέρ και κουμπί ελέγχου
• 600ml Blending Cup with 6 Stainless Steel Blades
• Sport Lid with Handle
• Bottom Lid (for converting to a portable bottle)
• Καλώδιο φόρτισης USB Type-C
• Βούρτσα καθαρισμού

Image: Amicool Cobocen Portable Blender showing its main components.

4. Ρύθμιση και φόρτιση

4.1 Αρχική χρέωση

Before first use, fully charge the blender. Connect the USB Type-C charging cable to the blender's charging port and a compatible USB power source (e.g., mobile charger, laptop, car charger). The indicator light will show charging status.

The built-in 4000 mAh rechargeable battery provides power for multiple blends on a single charge.

Image: Battery level indicator showing charge status.

4.2 Συναρμολόγηση

1. Place the blending cup onto the motor base.
2. Twist the cup clockwise until the red arrow on the cup aligns with the power button on the base. This activates the magnetic safety switch.
3. Ensure the sport lid is securely fastened to the blending cup.

5. Οδηγίες λειτουργίας

The Amicool Cobocen Portable Blender features two blending modes: Blend Mode and Pulse Mode.

5.1 Προετοιμασία Συστατικών

1. Cut fruits and vegetables into small pieces (approximately 1 inch / 2.5 cm).
2. Add ingredients to the blending cup, filling it around 60% of its capacity.
3. Add liquid (water, milk, juice) or ice cubes, filling the cup up to 80% of its capacity. Do not exceed the MAX line.

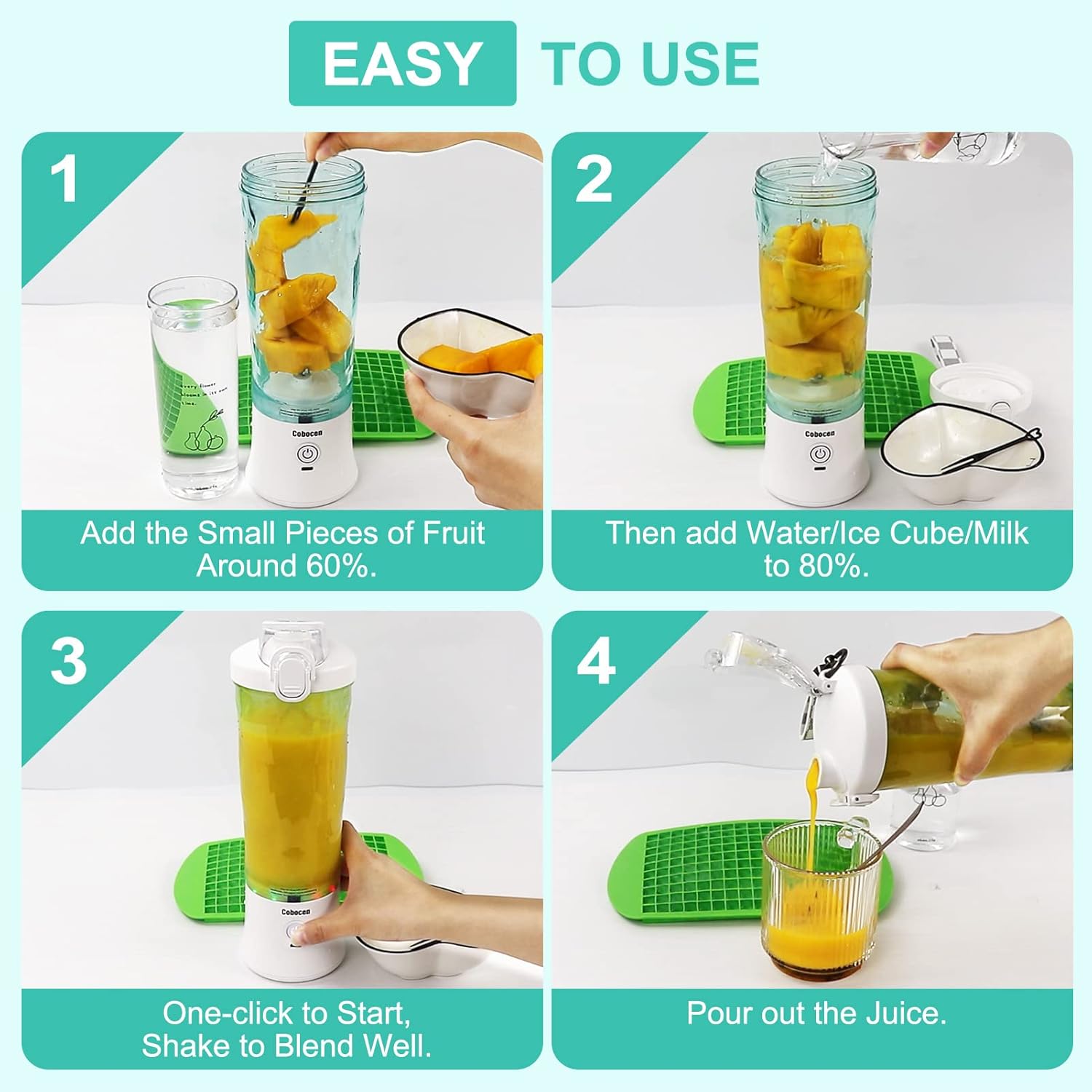

Image: Illustration of adding ingredients to the blender cup.

5.2 Blend Mode (Normal Mode)

This mode is ideal for smoothies, fruit shakes, and mixed drinks with softer ingredients.

• Ensure the cup is securely attached and the red arrow aligns with the power button.
• Press the power button once. The green light will flash, and the blender will operate automatically for 30 seconds.
• For best results, gently shake the blender during operation to ensure all ingredients are blended evenly.
• The blender will auto-stop after 30 seconds.

5.3 Παλμική λειτουργία

Use Pulse Mode for harder ingredients like frozen fruit, ice cubes, or to create thicker consistencies like jams.

• Ensure the cup is securely attached and the red arrow aligns with the power button.
• Quickly double-press the power button. The yellow light will flash.
• Press and hold the power button to blend. Release the button to stop blending.
• The Pulse Mode will automatically switch to Blend Mode after 5 seconds of inactivity.

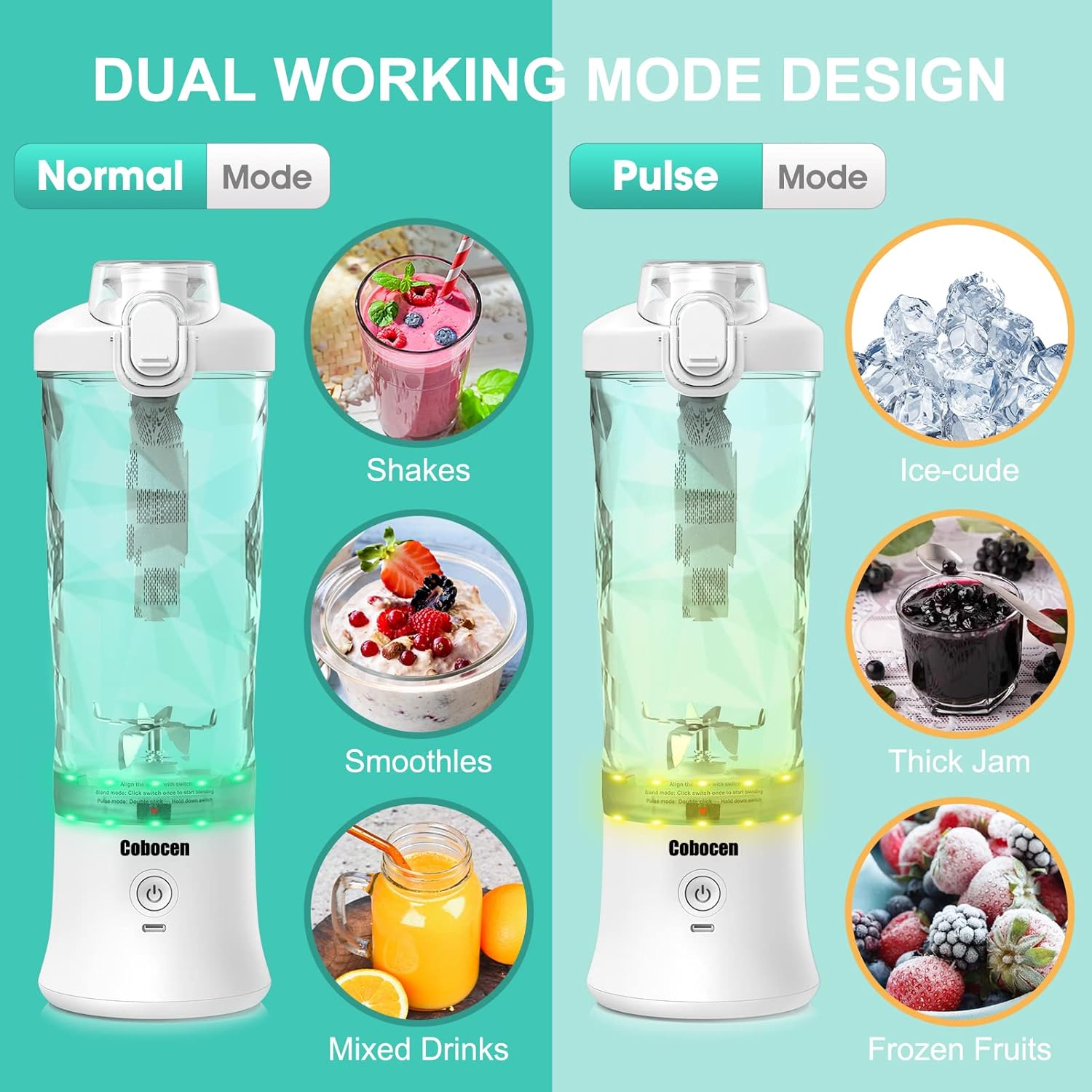

Image: Dual working modes: Blend Mode and Pulse Mode.

5.4 Converting to a Portable Bottle

After blending, you can replace the motor base with the included bottom lid to convert the blending cup into a portable bottle for easy transport.

Image: Converting the blender cup to a portable bottle.

6. Καθαρισμός και Συντήρηση

Ο σωστός καθαρισμός διασφαλίζει τη μακροζωία και την υγιεινή του μπλέντερ σας.

6.1 One-Touch Cleaning

• After use, add a small amount of dish soap and water to the blending cup.
• Secure the lid and press the power button to start the automatic cleaning cycle.
• Rinse the cup thoroughly with water.

6.2 Χειροκίνητος καθαρισμός

• The blender is detachable for easy cleaning. Separate the cup from the base.
• Use the provided cleaning brush to clean around the blades carefully.
• The base is IP67 waterproof and can be rinsed under a tap. Note: Do not soak the base in water for a long time.
• Βεβαιωθείτε ότι όλα τα μέρη είναι στεγνά πριν τα επανασυναρμολογήσετε ή τα αποθηκεύσετε.

Image: Waterproof design allows for easy rinsing.

7. Αντιμετώπιση Προβλημάτων

8. Προδιαγραφές

• Αριθμός μοντέλου: A9
• Ικανότητα: 600 ml
• Εξουσία: 270 Watt (Μέγ.)
• Τομtage: 7.4 Volt
• Μπαταρία: 4000 mAh (Επαναφορτιζόμενη)
• Λεπίδες: 6-blade 304 Stainless Steel
• Διαστάσεις: 31.6 x 9.9 x 9.9 εκ
• Βάρος: 920 γρ
• Ειδικά χαρακτηριστικά: Portable, USB Rechargeable, IP67 Waterproof Base, Magnetic Safety Switch
• Συνιστώμενη χρήση: Smoothies, Shakes, Juices, Baby Food, Ice Crush

9. Εγγύηση και υποστήριξη

For warranty information or technical support, please contact Amicool customer service through your purchase platform or the contact details provided with your product packaging. Please retain your proof of purchase for warranty claims.
