Εγχειρίδιο χρήστη για τον εναλλάκτη βίντεο πολλαπλών μορφών AVMATRIX VS0601

1. Εισαγωγή και Πάνωview

The AVMATRIX VS0601 is a compact, multi-format 6-channel video switcher designed for live production environments. It supports a variety of input signals, including 4 SDI and 2 HDMI inputs, and offers scaled outputs for both SDI and HDMI Program (PGM) feeds. The device also features HDMI and SDI multiview outputs for comprehensive monitoring, various transition effects (CUT, AUTO, T-BAR, FADE, WIPE, MIX), GPIO Tally, Picture-in-Picture (PIP), and Fade-to-Black (FTB) functionalities. Its portable design makes it suitable for diverse applications.

2. Χαρακτηριστικά προϊόντος

• Multi-format 6-Channel Input: Accepts 4 SDI and 2 HDMI input signals.
• Scaled Outputs: SDI and HDMI PGM outputs with scaling capabilities.
• Multiview Παρακολούθηση: Dedicated HDMI and SDI multiview outputs for monitoring all inputs simultaneously.
• Εφέ μετάβασης: Supports CUT, AUTO, T-BAR transitions, along with FADE, WIPE, and MIX effects.
• GPIO Tally Interface: For integration with live tally systems.
• Picture-in-Picture (PIP): Allows for overlaying one video source onto another.
• Fade-to-Black (FTB): Smooth transition to a black screen.
• Συμπαγής σχεδιασμός: Portable and easy to transport for on-location use.

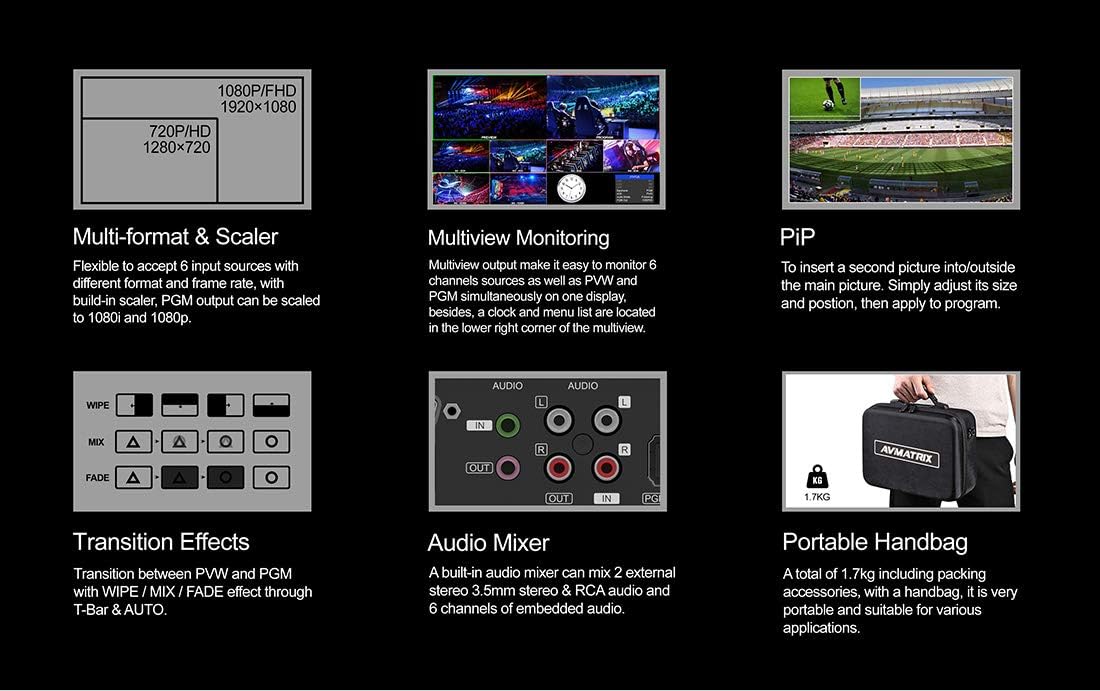

Σχήμα 2.1: Βασικά χαρακτηριστικά πάνω απόview

3. Ρύθμιση

3.1 Αποσυσκευασία και επιθεώρηση

Carefully unpack the AVMATRIX VS0601 and all accessories. Inspect the unit for any signs of damage during transit. Retain the packaging materials for future transport or storage.

3.2 Ρεύμα σύνδεσης

Connect the provided DC 12V power adapter to the 'DC 12V' input port on the rear panel of the switcher. Plug the adapter into a suitable power outlet. Ensure the power switch is in the 'OFF' position before connecting power.

3.3 Video Input Connections

The VS0601 supports 4 SDI inputs and 2 HDMI inputs. Connect your video sources (cameras, media players, computers) to the corresponding input ports on the rear panel.

• SDI Inputs: Connect up to four SDI sources to the 'SDI IN 1-4' ports.
• Είσοδοι HDMI: Connect up to two HDMI sources to the 'HDMI IN 5-6' ports.

Σχήμα 3.1: Συνδέσεις πίσω πάνελ

3.4 Video Output Connections

Connect your display monitors or recording devices to the output ports.

• Program (PGM) Output: Connect your main program display or recorder to the 'PGM OUT' (SDI or HDMI) ports.
• Multiview Παραγωγή: Connect a monitor to the 'MULTIVIEW OUT' (HDMI or SDI) for simultaneous viewing of all inputs, program, and preview.
• Έξοδος USB: Connect to a computer via the 'USB OUT' port for streaming applications.

3.5 Συνδέσεις ήχου

The switcher includes audio input and output options.

• Είσοδος ήχου: Connect external audio sources to the 'AUDIO IN' (RCA L/R or 3.5mm stereo) ports.
• Έξοδος ήχου: Connect to external audio monitoring or recording devices via the 'AUDIO OUT' (RCA L/R or 3.5mm stereo) ports.

3.6 Tally and LAN Connections

• Λογαριασμός: Connect a Tally system to the 'TALLY' (DB-15) port for visual indication of program and preview πηγές.
• LAN: Connect an Ethernet cable to the 'LAN' (RJ45) port for network control and firmware updates.

4. Οδηγίες λειτουργίας

4.1 Χειριστήρια μπροστινού πίνακα

The front panel provides intuitive controls for selecting inputs, managing transitions, and adjusting audio.

Εικόνα 4.1: Διάταξη μπροστινού πίνακα

• PGM (Program) Buttons: Select the input currently live on the program output.
• PVW (Preview) Κουμπιά: Select the input to be previewed before transitioning to program.
• T-Bar: Manually control transitions between preview και πρόγραμμα.
• CUT Button: Instantly switch from preview να προγραμματίσω.
• Κουμπί AUTO: Execute a transition with a pre-set speed.
• MENU Knob: Navigate and select options within the on-screen display (OSD) menu.
• AUDIO/EFFECTS Buttons: Access audio mixer controls, keying functions (Chroma, Luma, DSK), and Picture-in-Picture (PIP) settings.

4.2 Basic Switching

1. Power on the unit using the switch on the rear panel.
2. Στο Multiview monitor, observe all connected inputs.
3. Press a button in the PVW row to select an input for preview. This input will appear on the preview section of your multiview ελεγκτής εκπομπών.
4. Press a button in the PGM row to select an input for program. This input will immediately go live.
5. To transition from the previewed source to the program output, use the Τ-Μπαρ, ΤΟΜΗ button for an instant switch, or ΑΥΤΟ button for a timed transition.

4.3 Audio Mixing

The VS0601 features an integrated audio mixer. Access the audio controls via the front panel buttons and the OSD menu to adjust levels for embedded audio from HDMI/SDI inputs and external analog audio inputs.

• Χρησιμοποιήστε το AFV (Audio Follow Video) function to automatically switch audio with video transitions.
• Manually adjust individual audio channel levels using the menu and rotary knob.

4.4 Keying and PIP

The switcher supports various keying effects and Picture-in-Picture functionality.

• Κλειδί Χρώματος: Use for green screen or blue screen effects.
• Luma Key: Key based on brightness levels.
• DSK (Downstream Key): Overlay graphics or text onto the program output.
• PIP (Picture-in-Picture): Display a smaller video source within the main program video. Adjust size and position through the OSD menu.

5. Προδιαγραφές

Σχήμα 5.1: Τεχνικές προδιαγραφές

6. Συντήρηση

• Καθάρισμα: Use a soft, dry cloth to clean the exterior of the unit. Do not use liquid or aerosol cleaners.
• Αερισμός: Βεβαιωθείτε ότι υπάρχει κατάλληλος αερισμός γύρω από τη μονάδα για να αποτρέψετε την υπερθέρμανση. Μην φράζετε κανένα άνοιγμα εξαερισμού.
• Αποθήκευση: When not in use for extended periods, store the switcher in a cool, dry place, preferably in its original packaging.
• Ενημερώσεις υλικολογισμικού: Periodically check the AVMATRIX official website for firmware updates to ensure optimal performance and access to new features. Follow the instructions provided with the firmware update carefully.

7. Αντιμετώπιση Προβλημάτων

7.1 Δεν υπάρχει έξοδος βίντεο

• Verify that the power adapter is securely connected and the unit is powered on.
• Check all video cables (SDI, HDMI) for secure connections at both the switcher and the display/source.
• Ensure the correct input is selected on the PGM row.
• Confirm that the output resolution of the switcher is compatible with your display device.
• Test with different cables or display devices if possible.

7.2 Δεν υπάρχει έξοδος ήχου

• Ελέγξτε όλα τα καλώδια ήχου για ασφαλείς συνδέσεις.
• Verify audio levels in the mixer settings via the OSD menu. Ensure no channels are muted.
• Confirm that the audio source is active and producing sound.
• If using embedded audio, ensure the video source is providing audio.

7.3 Controls Unresponsive

• Restart the unit by powering it off and then on again.
• Ensure no foreign objects are obstructing buttons or the T-Bar.
• If connected via LAN, check network connection and control software status.

8. Εγγύηση και υποστήριξη

For warranty information and technical support, please refer to the official AVMATRIX webή επικοινωνήστε με τον τοπικό σας διανομέα. Κρατήστε την απόδειξη αγοράς ως απόδειξη αγοράς για τυχόν αξιώσεις εγγύησης.
