Nedis Rechargeable Lead Acid Battery 12V 9000mAh User Manual

1. Εισαγωγή

This manual provides essential information for the safe and efficient use of your Nedis Rechargeable Lead Acid Battery (Model BALA900012V). Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of the battery.

Image 1.1: Nedis 12V 9000mAh Rechargeable Lead Acid Battery in a workshop environment, showcasing ο συμπαγής σχεδιασμός του.

2. Οδηγίες ασφαλείας

Always observe the following safety precautions to prevent injury or damage to the battery and connected equipment:

• DO NOT SHORT CIRCUIT: Avoid connecting the positive and negative terminals directly, as this can cause severe damage to the battery, fire, or explosion.
• Use only compatible chargers designed for lead-acid batteries with the specified voltagε και ρεύμα.
• Μην εκθέτετε την μπαταρία σε ακραίες θερμοκρασίες, άμεσο ηλιακό φως ή φωτιά.
• Κρατήστε την μπαταρία μακριά από νερό και υγρασία.
• Do not attempt to open or disassemble the battery. It contains corrosive substances.
• In case of contact with battery acid, immediately flush the affected area with plenty of water and seek medical attention.
• Να φυλάσσεται μακριά από παιδιά.
• Ensure proper ventilation when charging to prevent accumulation of gases.
• RECHARGE AFTER USE: To maintain battery health and extend its lifespan, recharge the battery promptly after each use.

3. Το προϊόν τελείωσεview

The Nedis BALA900012V is a 12V, 9000mAh (9Ah) rechargeable sealed lead-acid battery designed for various applications requiring reliable power. Its robust construction ensures durability and consistent performance.

Εικόνα 3.1: Λεπτομερής view of the battery label, displaying model number BALA900012V and constant voltage charge parameters.

Βασικά Χαρακτηριστικά:

• Τομtage: 12 Volt
• Ικανότητα: 9000 mAh (9 Ah)
• Σύνθεση μπαταρίας: Μόλυβδος Οξύ
• Επαναχρησιμοποίηση: Επαναφορτιζόμενη
• Αριθμός μοντέλου: BALA900012V
• Designed for reliable power supply in various electronic tools and devices.

4. Ρύθμιση και εγκατάσταση

Before connecting the battery, ensure that the device it will power is compatible with a 12V lead-acid battery and that the current requirements do not exceed the battery's capabilities.

1. Επιθεωρήστε την μπαταρία: Visually check the battery for any signs of damage, leaks, or corrosion on the terminals. Do not use a damaged battery.
2. Προσδιορίστε τερματικά: Locate the positive (+) and negative (-) terminals on the battery. The positive terminal is typically marked with a plus sign and is often red, while the negative terminal is marked with a minus sign and is often black.
3. Σύνδεση στη συσκευή: Connect the positive terminal of the battery to the positive input of your device. Connect the negative terminal of the battery to the negative input of your device. Ensure connections are secure and tight to prevent arcing or poor performance.
4. Αρχική χρέωση: For optimal performance, it is recommended to fully charge the battery before its first use. Refer to the "Operating Instructions" section for charging details.

Εικόνα 4.1: Κορυφή view of the battery clearly showing the positive and negative terminals for correct connection.

5. Οδηγίες λειτουργίας

Φόρτιση της μπαταρίας:

Use a charger specifically designed for 12V lead-acid batteries. The battery label provides critical charging parameters:

• Constant Voltage χρέωση:
  • Χρήση κύκλου: 14.40 - 15.00 V
  • Χρήση σε κατάσταση αναμονής: 13.50 - 13.80 V
  • Αρχικό ρεύμα: Λιγότερο από 2.70 A
• RECHARGE AFTER USE: Always recharge the battery immediately after it has been discharged to prevent sulfation and prolong its life.
• Do not overcharge the battery, as this can reduce its lifespan and potentially cause damage.
• Ensure the charger's output voltage matches the battery's requirements.

Εικόνα 5.1: Γωνιακή view of the battery, highlighting its robust casing and terminal design.

Αποφόρτιση της μπαταρίας:

• Avoid deep discharges. While lead-acid batteries can tolerate deep discharges, frequent deep cycling can shorten their lifespan.
• Παρακολουθήστε τον τόμtage of the battery if your application allows. Do not allow the battery voltage to drop below 10.5V under load.

6. Συντήρηση

Proper maintenance ensures the longevity and reliability of your Nedis battery:

• Τακτική φόρτιση: Always recharge the battery after use. If stored for extended periods, recharge it every 3-6 months to prevent self-discharge and sulfation.
• Καθαρίστε τερματικά: Keep the battery terminals clean and free from corrosion. Use a wire brush if necessary and apply a thin layer of petroleum jelly to prevent future corrosion.
• Αποθήκευση: Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is fully charged before storage.
• Φυσική Επιθεώρηση: Ελέγχετε περιοδικά την μπαταρία casing for any cracks, bulges, or leaks. Discontinue use immediately if any damage is observed.

7. Αντιμετώπιση Προβλημάτων

8. Προδιαγραφές

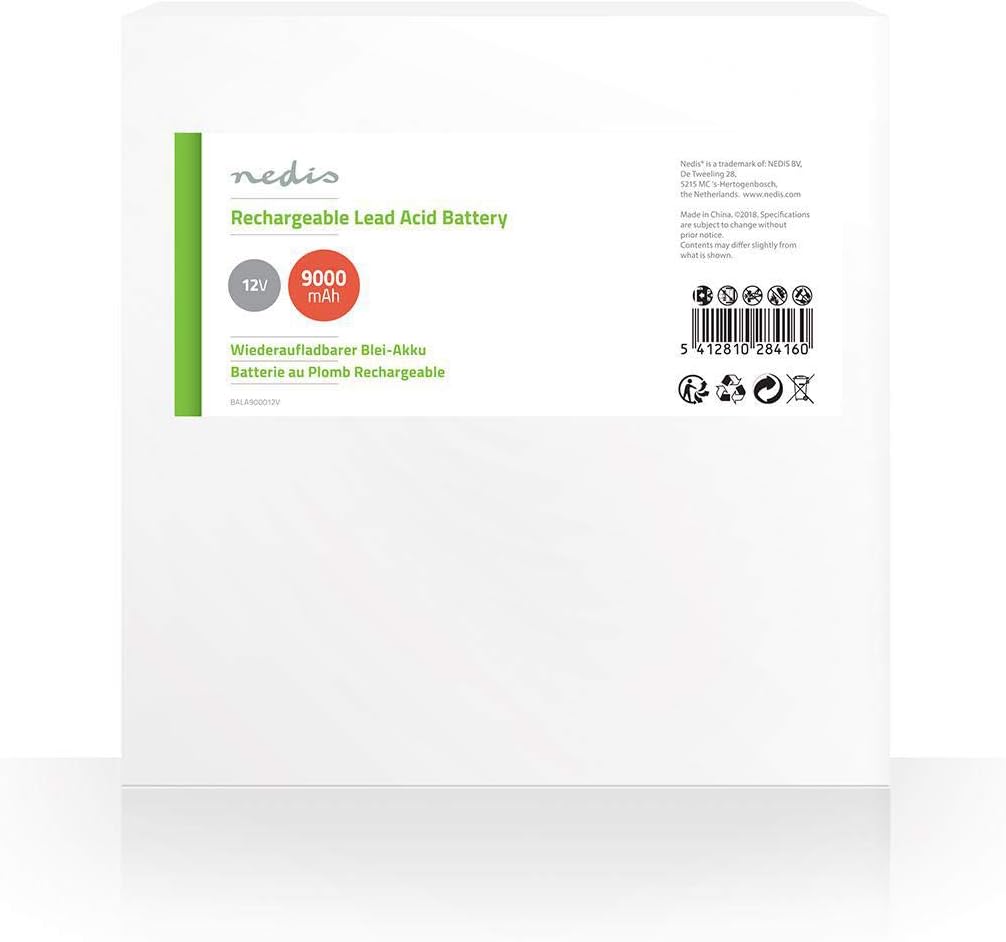

Εικόνα 8.1: Πίσω view of the battery, showing branding, model information, and regulatory marks.

9. Πληροφορίες απόρριψης

This product contains a lead-acid battery. Do not dispose of the battery with general household waste. Lead-acid batteries are recyclable and should be disposed of at designated collection points or recycling facilities in accordance with local regulations. Proper disposal helps prevent potential negative consequences for the environment and human health.

10. Εγγύηση και υποστήριξη

Για πληροφορίες σχετικά με την εγγύηση, τεχνική υποστήριξη ή ερωτήσεις σχετικά με την εξυπηρέτηση, ανατρέξτε στην τεκμηρίωση που παρέχεται με την αγορά σας ή επικοινωνήστε με τον πωλητή σας. Κρατήστε την απόδειξη αγοράς για τυχόν αξιώσεις εγγύησης.
