Samsung DC92-01527C Main PCB Assembly Instruction Manual

1. Το προϊόν τελείωσεview

The Samsung DC92-01527C is an authorized OEM (Original Equipment Manufacturer) main PCB (Printed Circuit Board) assembly designed as a replacement part for various Samsung brand models. This component serves as the central control unit for the appliance, managing its primary functions and operations. It is crucial for the proper functioning of compatible electronic devices.

2. Σημαντικές πληροφορίες για την ασφάλεια

WARNING: Installation of this component should only be performed by qualified service personnel. Improper installation can lead to electric shock, fire, or damage to the appliance.

• Αποσυνδέστε το ρεύμα: Always ensure the appliance is completely disconnected from the main power supply before attempting any installation or repair.
• ΣΤΑΤΙΚΟΣ ΗΛΕΚΤΡΙΣΜΟΣ: Electronic components are sensitive to static electricity. Use an anti-static wrist strap or discharge static electricity by touching a grounded metal object before handling the PCB.
• Χειριστείτε με προσοχή: Avoid touching the electronic components or connectors directly. Hold the board by its edges.
• Εργαλεία: Use appropriate insulated tools for installation.
• Αερισμός: Ensure adequate ventilation during and after installation to prevent overheating.

3. Αρμονία

The DC92-01527C main PCB assembly is compatible with various Samsung brand models. To ensure correct fit and function, it is essential to verify that the part number DC92-01527C matches the original part being replaced in your appliance. Refer to your appliance's service manual or the existing part for confirmation.

4. Οδηγός εγκατάστασης

Αυτή η ενότητα παρέχει ένα γενικό overview of the installation process. Specific steps may vary depending on the appliance model. Always consult the appliance's service manual for detailed, model-specific instructions.

4.1. Προετοιμασία

1. Αποσύνδεση ρεύματος: Αποσυνδέστε τη συσκευή από την πρίζα ή απενεργοποιήστε τον ασφαλειοδιακόπτη που παρέχει ρεύμα στη συσκευή.
2. Πίνακας πρόσβασης: Locate and remove the access panel(s) that cover the main PCB assembly. This may involve removing screws or clips.
3. Εργαλεία: Gather necessary tools, which may include screwdrivers, pliers, and an anti-static wrist strap.

4.2. Removal of Old PCB

1. Συνδέσεις εγγράφων: Before disconnecting any wires, take clear photographs or make detailed diagrams of all cable connections to the existing PCB. Note the color and position of each wire.
2. Αποσυνδέστε τα καλώδια: Carefully disconnect all ribbon cables, power connectors, and other wiring from the old PCB. Avoid pulling on the wires themselves; grasp the connectors.
3. Αφαιρέστε τις βίδες στερέωσης: Unscrew any mounting screws or release clips securing the old PCB in place.
4. Extract Old PCB: Gently lift and remove the old PCB from its housing.

4.3. Installation of New PCB

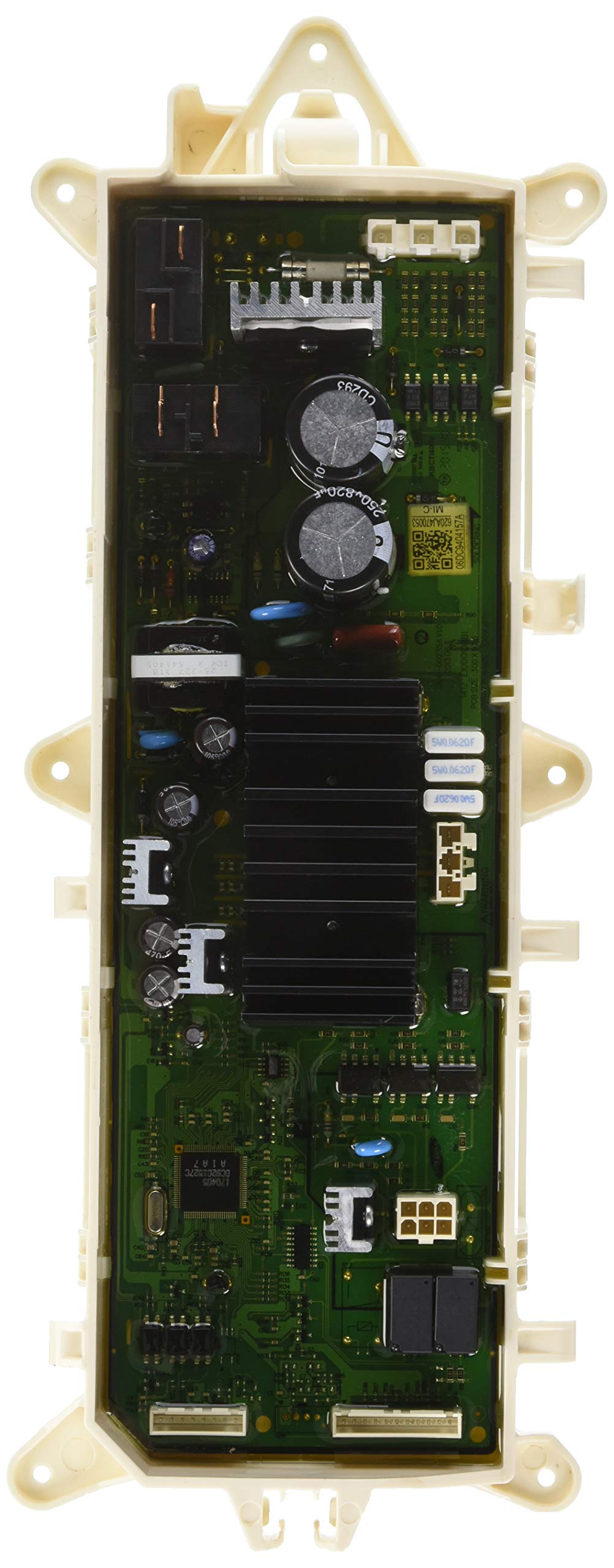

Image 1: Samsung DC92-01527C Main PCB Assembly. This image displays the main PCB with a size reference, indicating its approximate dimensions for visual confirmation.

1. Position New PCB: Carefully place the new DC92-01527C PCB assembly into the designated slot, ensuring proper alignment with mounting points.
2. Secure PCB: Fasten the new PCB with the mounting screws or clips removed earlier. Do not overtighten.
3. Επανασυνδέστε τα καλώδια: Using your photographs or diagrams, carefully reconnect all cables and connectors to their correct positions on the new PCB. Ensure all connections are secure and properly seated.

4.4. Μετά την εγκατάσταση

1. Επανασυναρμολόγηση: Replace any access panels or covers removed during the process.
2. Επαναφορά ισχύος: Συνδέστε ξανά τη συσκευή στην πρίζα ή ενεργοποιήστε τον ασφαλειοδιακόπτη.
3. Λειτουργικότητα δοκιμής: Power on the appliance and test its functions to ensure the new PCB is operating correctly.

5. Operation (Post-Installation Checks)

After successful installation of the DC92-01527C main PCB assembly, the appliance should resume normal operation. Observe the appliance for any unusual behavior, error codes, or malfunctions. If the appliance does not power on or function as expected, refer to the troubleshooting section.

6. Αντιμετώπιση Προβλημάτων

If the appliance does not function correctly after replacing the main PCB, consider the following:

• Χωρίς ισχύ: Double-check that the appliance is securely plugged into a working power outlet and that the circuit breaker is on. Verify all power connections to the PCB are secure.
• Κωδικοί σφαλμάτων: If the appliance displays an error code, consult your appliance's user manual or service manual for the specific meaning of the code and recommended solutions.
• Λανθασμένη Λειτουργικότητα: Review all cable connections to the PCB. Ensure they are correctly seated and match the original configuration. A loose or incorrect connection can cause various issues.
• Βλάβη εξαρτήματος: Inspect the new PCB for any visible damage that might have occurred during shipping or installation.
• Επαγγελματική Βοήθεια: If issues persist after performing basic checks, it is recommended to contact a qualified service technician for further diagnosis and repair.

7. Συντήρηση

The Samsung DC92-01527C main PCB assembly requires minimal maintenance. To ensure its longevity and proper function:

• Διατήρηση στεγνού: Protect the appliance and its internal components from moisture and liquids.
• Καθαριότητα: Ensure the area around the PCB remains free from dust and debris, which can impede cooling and cause short circuits.
• Αποφύγετε τη σωματική βλάβη: Prevent impacts or excessive vibrations to the appliance that could damage the PCB or its connections.

8. Προδιαγραφές

9. Εγγύηση και υποστήριξη

As an authorized OEM part, the Samsung DC92-01527C main PCB assembly is typically covered by a manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the documentation provided with your purchase or contact the seller directly. For technical support or further assistance, you may also visit the official Κατάστημα Samsung ή τα επίσημα κανάλια υποστήριξής τους.
