Generic Carburetor Instruction Manual

1. Εισαγωγή

This manual provides essential information for the installation, operation, and maintenance of your new Generic carburetor, model chy25110312. This carburetor is designed as a replacement part for DR Power Pro 24 G210FDS Snow Thrower Engines. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

Image 1.1: The Generic carburetor, including associated gaskets and fuel line, ready for installation.

2. Πληροφορίες Ασφάλειας

Always prioritize safety when working with fuel systems and engines. Failure to follow safety instructions can result in serious injury or property damage.

• Χειρισμός καυσίμων: Gasoline is highly flammable. Always work in a well-ventilated area, away from open flames, sparks, or other ignition sources. Do not smoke.
• Προστασία ματιών: Wear appropriate eye protection (safety glasses or goggles) to shield against fuel splashes or debris.
• Γάντια: Wear fuel-resistant gloves to protect your hands from gasoline and other chemicals.
• Ψύξη κινητήρα: Allow the engine to cool completely before performing any maintenance or installation. Hot engine components can cause severe burns.
• Αποσύνδεση μπουζί: Before working on the engine, disconnect the spark plug wire to prevent accidental starting.
• Σωστή απόρριψη: Dispose of old fuel and engine fluids according to local regulations.
• Συμβουλευτείτε το εγχειρίδιο του κινητήρα: Refer to your snow thrower engine's original instruction manual for specific safety procedures and torque specifications.

3. Περιεχόμενα συσκευασίας

Βεβαιωθείτε ότι όλα τα εξαρτήματα υπάρχουν και δεν έχουν υποστεί ζημιά πριν προχωρήσετε στην εγκατάσταση.

• 1 x Generic Carburetor (Model chy25110312)
• 2 x Gaskets (as shown in images)
• 1 x Fuel Line (pre-attached or separate, depending on specific kit)

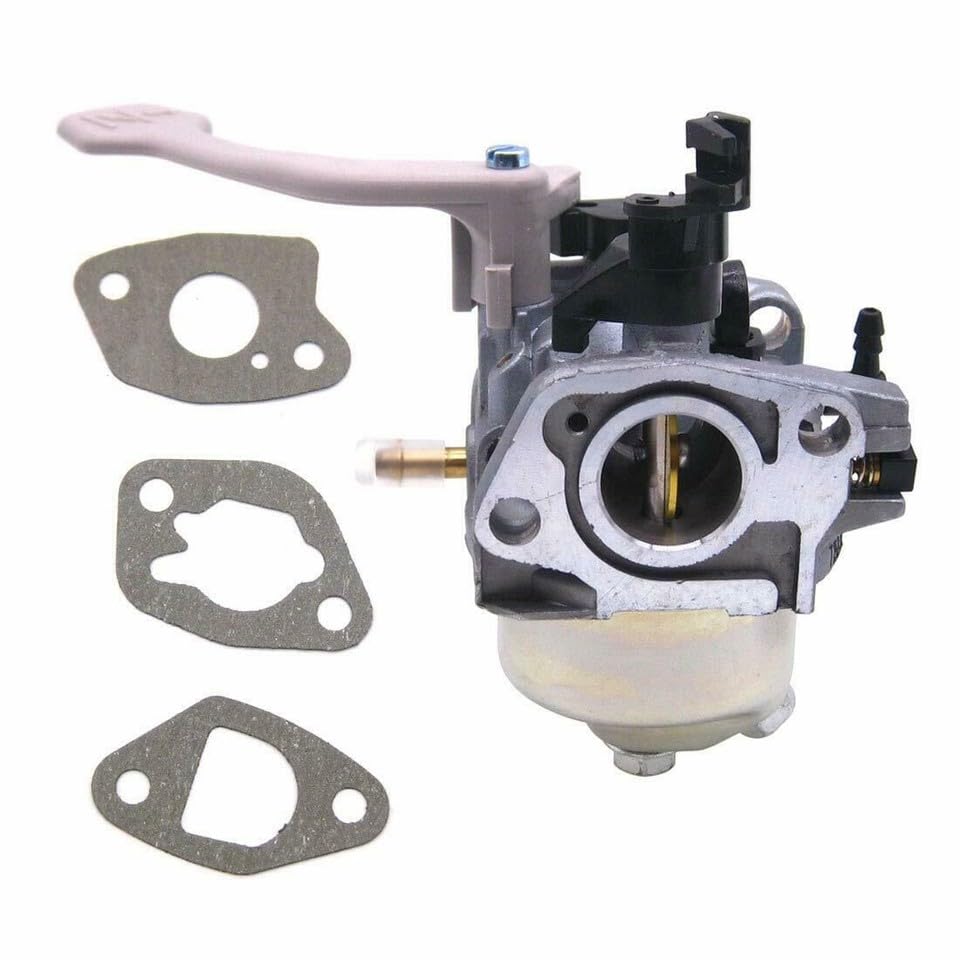

Εικόνα 3.1: View of the carburetor and included gaskets, essential for a proper seal during installation.

4. Ρύθμιση και εγκατάσταση

This section outlines the general steps for replacing a carburetor. Specific procedures may vary slightly depending on your snow thrower engine model. Always refer to your engine's service manual for detailed instructions.

1. Παρασκευή:
   • Βεβαιωθείτε ότι ο κινητήρας είναι κρύος και ότι το καλώδιο του μπουζί είναι αποσυνδεδεμένο.
   • Drain the fuel tank or clamp the fuel line to prevent fuel leakage.
   • Gather necessary tools (wrenches, screwdrivers, pliers, fuel-resistant container for old fuel).
2. Αφαιρέστε το συγκρότημα φίλτρου αέρα:
   • Locate and remove the air filter housing and air filter.
   • Disconnect any hoses or linkages attached to the air filter assembly.
3. Αποσύνδεση παλιού καρμπυρατέρ:
   • Carefully disconnect the fuel line from the old carburetor. Be prepared for residual fuel.
   • Disconnect the throttle linkage and choke linkage from the carburetor. Note their positions for reassembly.
   • Unbolt the carburetor from the engine manifold. There may be two or more bolts.
   • Remove the old carburetor and any old gaskets.
4. Εγκατάσταση νέου καρμπυρατέρ:
   • Clean the mounting surfaces on the engine manifold and air filter housing.
   • Place new gaskets in their correct positions. Ensure they are properly aligned.
   • Mount the new carburetor onto the engine manifold, aligning it with the bolt holes.
   • Secure the carburetor with the bolts, tightening them evenly to the manufacturer's specifications (refer to engine manual). Do not overtighten.
5. Επανασύνδεση εξαρτημάτων:
   • Reconnect the throttle linkage and choke linkage to the new carburetor. Verify smooth operation.
   • Reconnect the fuel line to the carburetor. Ensure a secure, leak-free connection.
   • Reinstall the air filter assembly and air filter.
6. Τελικοί έλεγχοι:
   • Refill the fuel tank (if drained) or unclamp the fuel line.
   • Check for any fuel leaks around the carburetor and fuel lines.
   • Επανασυνδέστε το καλώδιο του μπουζί.

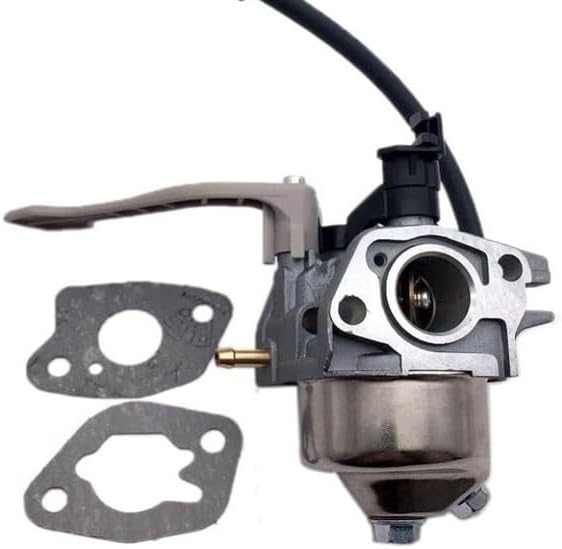

Εικόνα 4.1: Πλάγια όψη view of the carburetor, highlighting the fuel inlet and linkage points for proper connection.

5. Οδηγίες λειτουργίας

After installation, the engine should start and run smoothly. If you encounter issues, refer to the Troubleshooting section.

• Αρχική εκκίνηση:
  • Ensure the fuel tank has fresh, clean fuel.
  • Set the choke to the "Full Choke" position (if applicable).
  • Set the throttle to the "Fast" or "Start" position.
  • Pull the starter cord or engage the electric starter until the engine fires.
  • Once the engine starts, gradually move the choke to the "Run" position as the engine warms up.
• Κανονική λειτουργία:
  • Allow the engine to warm up for a few minutes before applying load.
  • Adjust the throttle as needed for desired engine speed.
• Κλείνω το εργοστάσιον:
  • Move the throttle to the "Idle" or "Stop" position.
  • Turn off the engine using the ignition switch.

6. Συντήρηση

Regular maintenance helps ensure the longevity and optimal performance of your carburetor and engine.

• Ποιότητα καυσίμου: Always use fresh, clean gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during storage.
• Φίλτρο καυσίμου: Regularly inspect and replace the fuel filter (if equipped) to prevent debris from reaching the carburetor.
• Φίλτρο αέρα: Keep the air filter clean. A dirty air filter can restrict airflow and affect carburetor performance.
• Αποθήκευση: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system to prevent gum and varnish buildup in the carburetor.
• Επιθεώρηση: Periodically inspect fuel lines for cracks or leaks and replace as necessary. Check carburetor linkages for proper movement.

7. Αντιμετώπιση Προβλημάτων

If your engine experiences issues after carburetor installation, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician or refer to your engine's specific service manual.

8. Προδιαγραφές

Key specifications for the Generic Carburetor, model chy25110312.

• Αριθμός μοντέλου: chy25110312
• Μάρκα: Γενικός
• Κατασκευαστής: Γενικός
• Εξωτερικό φινίρισμα: Αμεμπτος
• UPC: 776869240863
• Αρμονία: Designed for DR Power Pro 24 G210FDS Snow Thrower Engines.

9. Εγγύηση και υποστήριξη

Information regarding product warranty and customer support is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for details on warranty coverage, return policies, and technical assistance.

For general inquiries or further assistance, you may attempt to contact the manufacturer, Generic, if contact information was provided with your purchase.
