Generic Commercial Heavy Duty A4 Paper Cutter Instruction Manual

1. Εισαγωγή

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Generic Commercial Heavy Duty A4 Paper Cutter. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

2. Οδηγίες ασφαλείας

WARNING: This paper cutter contains extremely sharp blades. Always exercise extreme caution during operation and maintenance.

• Always keep hands and fingers clear of the cutting blade area.
• Ensure the safety lock is engaged when the cutter is not in use or during maintenance.
• Operate the paper cutter on a stable, flat surface to prevent tipping.
• Μην επιχειρήσετε να κόψετε άλλα υλικά εκτός από χαρτί.
• Keep children and unauthorized personnel away from the paper cutter.
• Wear appropriate safety gloves when handling the blade for cleaning or replacement.
• After each cut, always raise the handle to its lock position to secure the blade.

Figure 2.1: Safety Lock Design. This mechanism helps prevent accidental blade descent.

Figure 2.2: Safety Handle. Always ensure the handle is in the locked position when not cutting.

3. Το προϊόν τελείωσεview

The Generic Commercial Heavy Duty A4 Paper Cutter is designed for precise and efficient cutting of paper stacks up to 45mm thick. Key components include:

• Λεπίδα κοπής: Made of hardened steel for durability and sharpness.
• Λαβή κοπής: Επιμηκυμένο για άνετη λειτουργία.
• Paper Pressing Device: Rotary design with a rotating handle to secure paper.
• Grid Ruler: Integrated into the base for accurate measurements in millimeters.
• Movable Positioning Stopper: Adjustable guide for precise paper alignment.
• Κλείδωμα ασφαλείας: Mechanism to secure the cutting handle when not in use.
• Αντιολισθητικά λαστιχένια πόδια: Located at each corner of the base for stability.

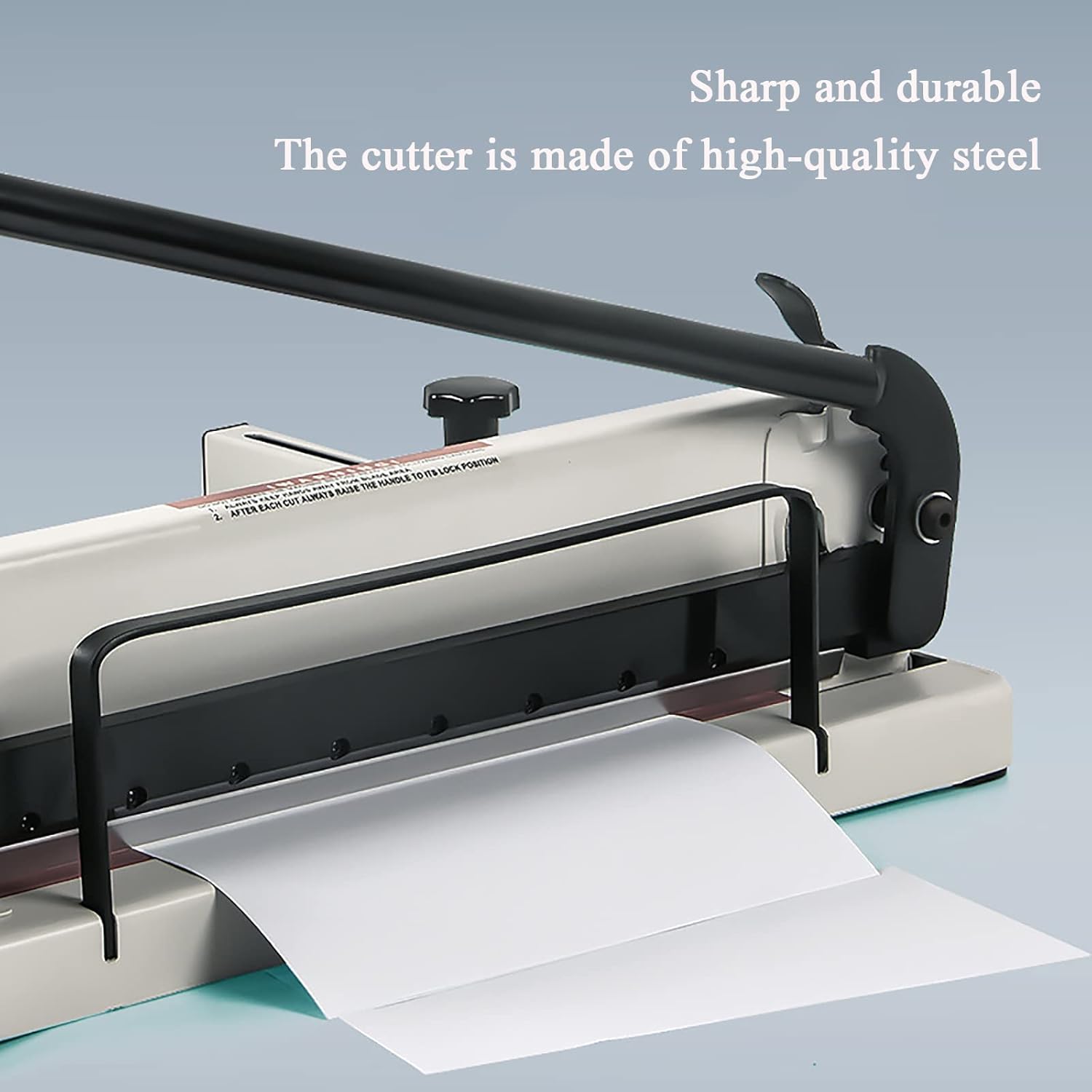

Figure 3.1: High-Quality Steel Blade. The blade is designed for sharp and durable performance.

Figure 3.2: Grid Ruler and Positioning Stopper. These features assist in precise paper alignment.

Figure 3.3: Detailed Grid Ruler. Provides measurements and common paper size guides for accurate cutting.

4. Ρύθμιση

1. Αποσυσκευασία: Carefully remove the paper cutter from its packaging. Retain packaging for future transport or storage.
2. Τοποθέτηση: Place the paper cutter on a sturdy, level, and stable work surface. Ensure the non-skid rubber feet are firmly in contact with the surface to prevent movement during operation.
3. Εκτελωνισμός: Ensure adequate space around the cutter for safe operation and to accommodate paper sheets.
4. Έλεγχος ασφαλείας: Before first use, verify that all components are securely fastened and that the safety lock mechanism functions correctly.

5. Οδηγίες λειτουργίας

1. Προετοιμασία χαρτιού: Stack the paper neatly and align the edges. The maximum cutting capacity is 360 sheets of 80g paper or a thickness of 0.5-45mm. Do not exceed this capacity.
2. Unlock Handle: Release the safety lock on the cutting handle.
3. Έγγραφο θέσης: Place the paper stack onto the cutting base, aligning it with the desired measurement on the grid ruler. Use the movable positioning stopper to hold the paper firmly against the back guide for consistent cuts.
4. Ασφαλές Χαρτί: Rotate the handle on the right side of the paper cutter to lower and tighten the paper pressing device. This secures the paper stack, preventing shifting during the cut.
5. Εκτέλεση κοπής: Firmly grasp the lengthened cutting handle. With a smooth, continuous motion, pull the handle down to cut through the paper stack. Apply steady pressure.
6. Release Paper: Once the cut is complete, lift the cutting handle back to its upright position and engage the safety lock. Then, loosen the paper pressing device by rotating its handle.
7. Remove Cut Paper: Carefully remove the cut paper from the base.

6. Συντήρηση

• Καθάρισμα: Regularly wipe down the cutter's surfaces with a dry, soft cloth. Remove any paper dust or debris from the cutting area.
• Φροντίδα λεπίδων: The blade is made of high-quality steel and designed for longevity. If the blade becomes dull, it may require professional sharpening or replacement. Always engage the safety lock and wear protective gloves when inspecting the blade.
• Λάδωμα: Periodically apply a small amount of light machine oil to moving parts, such as the handle pivot points and the paper pressing mechanism, to ensure smooth operation.
• Αποθήκευση: When not in use, store the paper cutter in a clean, dry environment with the safety lock engaged.

7. Αντιμετώπιση Προβλημάτων

• Uneven Cuts: Ensure the paper stack is evenly aligned and securely clamped by the paper pressing device. Check that the movable positioning stopper is set correctly.
• Δυσκολία κοπής: Verify that the paper thickness does not exceed the maximum capacity (45mm or 360 sheets of 80g paper). The blade may be dull and require sharpening or replacement.
• Handle Sticking: Check for any obstructions in the handle mechanism. Apply lubrication to pivot points if necessary.
• Paper Slipping: Ensure the paper pressing device is tightened sufficiently to hold the paper stack firmly.

8. Προδιαγραφές

9. Εγγύηση και υποστήριξη

Αυτό το προϊόν συνοδεύεται από α 3 μήνες εγγύηση από την ημερομηνία αγοράς, καλύπτοντας κατασκευαστικά ελαττώματα. Παρακαλούμε φυλάξτε την απόδειξη αγοράς για τυχόν αξιώσεις εγγύησης.

For technical support, warranty inquiries, or replacement parts, please contact your retailer or the manufacturer's customer service department. Provide your product model number (A4 Paper Cutter) and ASIN (B0F6SFG6R) when contacting support.
