ZUKKA 29 Inch 1-Speed Mountain Bike Instruction Manual

Οδηγός εγκατάστασης

This section provides step-by-step instructions for assembling your ZUKKA Mountain Bike. Ensure all components are present and undamaged before beginning assembly.

1. Εγκατάσταση τιμονιού

To install the handlebar, first loosen the bolts on the stem using the provided Allen wrench. Position the handlebar into the stem, ensuring it is centered and aligned correctly. Tighten the bolts securely, alternating between them to ensure even pressure. Refer to the video for a visual guide.

Figure 2: Handlebar and Stem Assembly. This image provides a close-up view of the handlebar attachment point, illustrating the bolts that need to be tightened.

2. Εγκατάσταση μπροστινού τροχού

Carefully align the front wheel with the fork. Ensure the disc brake rotor slides correctly into the brake caliper. Insert the quick-release skewer or axle through the hub and secure it firmly. The video provides a visual demonstration of this step.

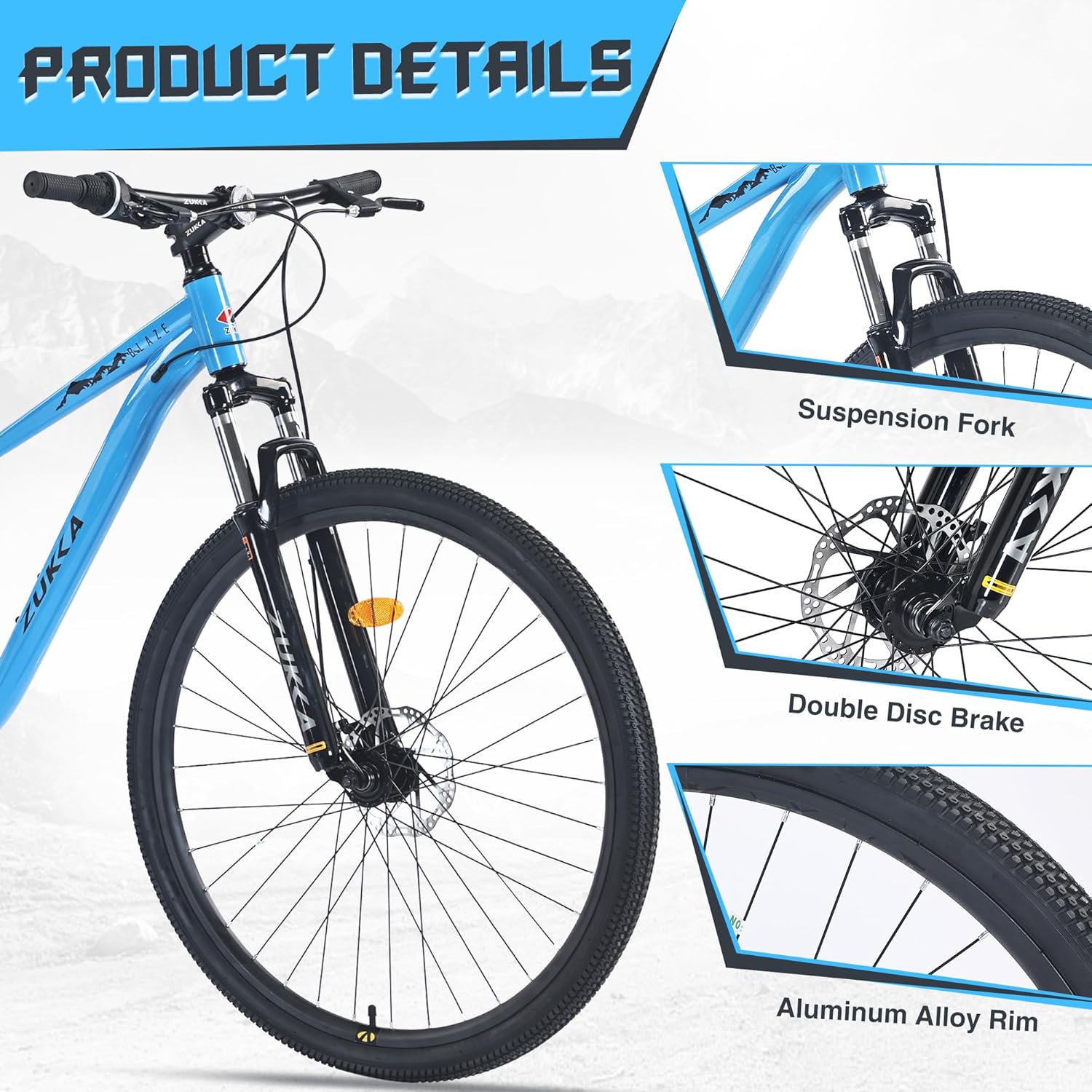

Figure 3: Front Wheel and Disc Brake Assembly. This image shows the front wheel, highlighting the disc brake rotor and caliper for proper alignment during installation.

3. Εγκατάσταση πεντάλ

Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Apply a small amount of grease to the pedal threads before screwing them into the crank arms. Tighten them firmly with a pedal wrench. The video demonstrates the correct orientation and tightening procedure.

Figure 4: Pedal Detail. This image provides a close-up of the pedal, showing its reflective surface and attachment point.

4. Seat and Rear Reflector Installation

Insert the seat post into the frame's seat tube. Adjust the seat height to a comfortable riding position, ensuring your feet can touch the ground when seated. Secure the quick-release lever or tighten the seat post clamp bolt. Attach the rear reflector to the seat post, ensuring it is visible from behind. The video demonstrates the seat and reflector attachment.

Figure 5: Seat and Rear Reflector. This image shows the bicycle seat and the attached rear reflector, emphasizing its position for visibility.

Operating Your ZUKKA Mountain Bike

Understanding the features of your ZUKKA Mountain Bike will enhance your riding experience.

Οδηγώντας με Ασφάλεια

• Να φοράτε πάντα κράνος και κατάλληλο εξοπλισμό ασφαλείας.
• Perform a pre-ride check of brakes, tires, and all bolted connections.
• Να είστε ενήμεροι για το περιβάλλον σας και να τηρείτε όλους τους κανόνες οδικής κυκλοφορίας.

Σύστημα πέδησης

Your ZUKKA Mountain Bike is equipped with dual disc brakes for precise and reliable stopping power. Familiarize yourself with the feel of both front and rear brakes. Apply both brakes simultaneously for optimal stopping, feathering the front brake to avoid skidding.

Single-Speed System

This model features a single-speed system, designed for simplicity and consistent riding speed. It is ideal for beginners and provides stable performance across various road conditions without the need for gear changes.

Καταλληλότητα εδάφους

The ZUKKA 29 Inch Mountain Bike is designed for versatility across different terrains. Its robust construction and tire design provide excellent traction and shock absorption.

Figure 6: Terrain Suitability. This image illustrates the various types of terrain, including city roads, muddy roads, snow roads, and gravel roads, for which the ZUKKA bike is suitable.

Οδηγίες συντήρησης

Regular maintenance ensures the longevity and safe operation of your bicycle.

Τακτικοί Έλεγχοι

• Ελαστικά: Check tire pressure before each ride. The recommended pressure is typically indicated on the tire sidewall. Inspect for any cuts, punctures, or excessive wear.
• Φρένα: Ensure brake levers engage smoothly and provide firm stopping power. Check brake pads for wear and replace if necessary.
• Βίδες και συνδετήρες: Periodically check all bolts and fasteners, especially on the handlebars, seat post, wheels, and pedals, to ensure they are tight.
• Αλυσίδα: Keep the chain clean and lubricated. A well-lubricated chain reduces friction and extends component life.

Καθαρισμός και Λίπανση

Clean your bike regularly with mild soap and water, avoiding high-pressure sprays directly on bearings. After cleaning, dry the bike thoroughly and apply bicycle-specific lubricant to the chain and other moving parts.

Φροντίδα ελαστικών

Proper tire inflation is crucial for performance and safety. Under-inflated tires can lead to pinch flats and increased rolling resistance, while over-inflated tires can reduce traction and ride comfort. The ZUKKA 29x1.95 inch tires are made of high-quality rubber for excellent wear resistance.

Αντιμετώπιση προβλημάτων κοινών προβλημάτων

This section addresses common problems you might encounter and how to resolve them.

Χαλαρά εξαρτήματα

If you notice any wobbling or looseness in the handlebars, seat, or wheels, immediately stop riding. Use the appropriate tools (Allen wrenches, spanners) to tighten all bolts and quick-release levers as demonstrated in the Setup Guide. Ensure they are secure but do not overtighten.

Ρύθμιση φρένων

If your disc brakes feel spongy or are not stopping effectively, they may need adjustment. Check the brake cable tension and ensure the brake pads are properly aligned with the rotor. Minor adjustments can often be made by tightening or loosening the cable at the caliper. For significant issues or if you are unsure, consult a professional bicycle mechanic.

Άλλα Θέματα

For any issues not covered here, or if problems persist after attempting troubleshooting steps, it is recommended to seek assistance from a qualified bicycle mechanic. Do not attempt repairs that are beyond your mechanical ability.

Προδιαγραφές προϊόντος

Figure 7: Product Size Diagram. This image provides key dimensions of the bicycle, including handlebar width, seat height range, and overall length and height.

Figure 8: Rider Height and Weight Guidelines. This diagram illustrates the recommended age range, rider height, wheel size, and net weight for the bicycle.

Εγγύηση και υποστήριξη

For warranty information, please refer to the documentation included with your purchase or visit the official ZUKKA website. If you require technical support or have questions regarding your ZUKKA Mountain Bike, please contact ZUKKA customer service directly.

Contact information can typically be found on the product packaging or the brand's official online presence.
