Εισαγωγή
This manual provides detailed instructions for the safe and efficient use of your BoostArea Dimmable Floor Lamp (Model 24515-YK30). This 30W LED torchiere lamp features stepless dimming, adjustable color temperature (2700K-6500K), and dual control methods via touch and remote. Please read this manual thoroughly before assembly and operation, and retain it for future reference.
Περιεχόμενα συσκευασίας
Βεβαιωθείτε ότι όλα τα εξαρτήματα είναι παρόντα πριν ξεκινήσετε τη συναρμολόγηση:
- Όροφος Λamp (Multiple sections for pole, base, and lamp κεφάλι)
- Τηλεχειριστήριο
- Εγχειρίδιο χρήστη (Αυτό το έγγραφο)

Image: The BoostArea Dimmable Floor Lamp, showing the lamp assembled, along with its remote control and touch control panel on the pole.
Οδηγίες συναρμολόγησης
The BoostArea Dimmable Floor Lamp is designed for quick and easy assembly without the need for additional tools. Follow these steps:
- Αποσυσκευάστε προσεκτικά όλα τα εξαρτήματα από τη συσκευασία.
- Connect the pole sections by screwing them clockwise until secure. Ensure the power cord runs freely through the pole.
- Επισυνάψτε το lamp head to the top pole section, screwing it clockwise until firmly in place.
- Secure the base to the bottom pole section by screwing it clockwise. Ensure the power cord is not pinched.
- Συνδέστε το τροφοδοτικό σε μια τυπική πρίζα.

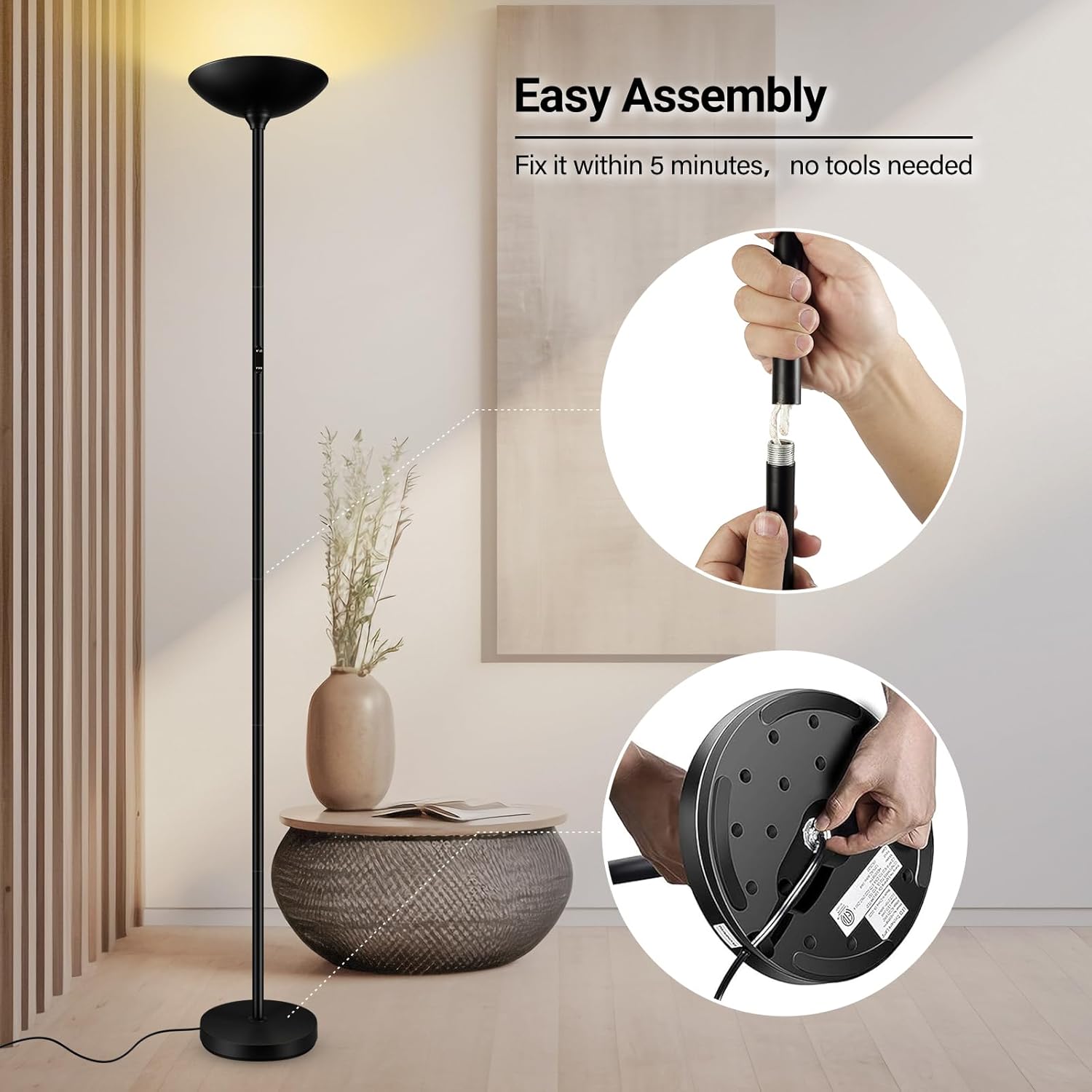

Image: Visual guide demonstrating the simple screw-together assembly process for the lamp κοντάρι και βάση.
Οδηγίες Λειτουργίας
Your BoostArea Dimmable Floor Lamp can be controlled using either the integrated touch control on the lamp pole or the included remote control.
Αγγίξτε Έλεγχος
- Ενεργοποίηση/Απενεργοποίηση: Lightly touch the power symbol on the lamp κοντάρι για να στρίψετε το λamp ενεργοποίηση ή απενεργοποίηση.
- Ρύθμιση φωτεινότητας: Press and hold the power symbol to steplessly adjust the brightness from 5% to 100% or 100% to 5%. Release when desired brightness is reached.
- Ρύθμιση θερμοκρασίας χρώματος (CCT): Lightly touch the "CCT" button to cycle through different color temperatures (e.g., 2700K Warm White, 4000K Neutral Light, 5000K Daylight, 6500K Cool White).
Τηλεχειριστήριο
The remote control offers comprehensive functionality, including power, brightness, color temperature, and preset lighting modes. Ensure the remote is paired with the lamp για πλήρη λειτουργικότητα.
- Ενεργοποίηση/Απενεργοποίηση: Πατήστε το κουμπί λειτουργίας.
- Ρύθμιση φωτεινότητας: Use the '+' and '-' buttons to increase or decrease brightness.
- Ρύθμιση θερμοκρασίας χρώματος: Use the 'sun' icon buttons to adjust color temperature (e.g., turn to 6500K, turn to 2700K).
- Προκαθορισμένες λειτουργίες: Select from various modes like Sleeping Mode, Nursery Mode, Reading Mode, Working Mode, Leisure Mode, and Night Light Mode.
- Χρονοδιακόπτης 1 ωρών: Press the '1H' button to activate a 1-hour timer.
- Λειτουργία μνήμης: Το λamp remembers the last brightness and color temperature setting used.

Εικόνα: Λεπτομερής view of the remote control and the touch-sensitive panel on the lamp's pole, highlighting control options.

Image: Diagram illustrating the various buttons on the remote control and their corresponding functions, such as dimming, color temperature adjustment, and preset modes.
Απομακρυσμένη σύζευξη
If the remote control is not responding, it may need to be paired with the lamp:
- Αποσυνδέστε το lamp από την πρίζα.
- Wait for any residual power in the lamp to dissipate (the indicator light on the lamp pole should turn off).
- Συνδέστε το lamp πίσω στην πρίζα.
- Immediately press and hold the "power" button (top right corner) on the remote control.
- Continue holding until the floor lamp αναβοσβήνει 3 φορές, υποδεικνύοντας επιτυχημένη σύζευξη.
Video: Demonstration of how to pair the remote control with the BoostArea Dimmable Floor Lamp, showing the steps of unplugging, waiting, plugging in, and holding the remote's power button until the lamp αναβοσβήνει.
Βασικά Χαρακτηριστικά
- Stepless Dimming & Dual Control: Adjust brightness from 5% to 100% using either the touch control on the lamp pole or the included remote control. The lamp retains your last setting.
- Τεχνολογία LED εξοικονόμησης ενέργειας: Equipped with high-efficiency 30W LED beads (equivalent to a 250W incandescent lamp), providing 3000LM brightness with over 50,000 hours lifespan, significantly reducing electricity consumption.
- Ρυθμιζόμενη θερμοκρασία χρώματος: Offers a range of color temperatures from 2700K (Warm White) to 6500K (Cool White) to suit various environments and preferences.
- Robust and Safe Design: Constructed with a full metal body from base to head, ensuring stability and durability. Passed UL 8° Stability testing, making it safe for households with children or pets. The LED beads remain cool to the touch even after extended use.
- Εύκολη συναρμολόγηση: Designed for quick setup within 10 minutes, requiring no special tools.
- Modern and Versatile Design: Its sleek, compact design complements various home decor styles, suitable for bedrooms, living rooms, offices, and study areas.
- Συμβατότητα έξυπνων συσκευών: Can be connected to smart devices (not included) for enhanced home automation and convenience.

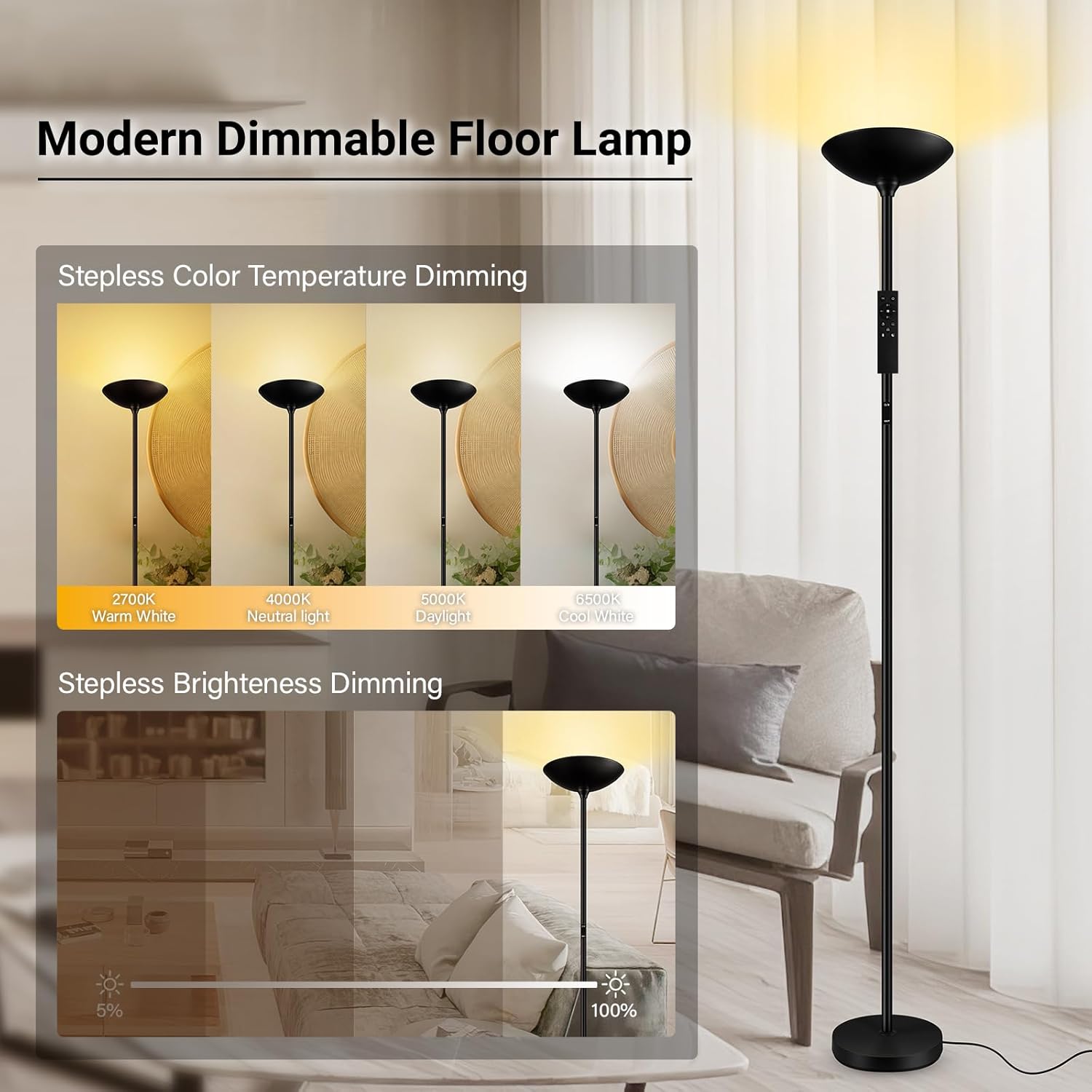

Image: Illustration of the lamp's stepless color temperature adjustment, displaying light from 2700K Warm White to 6500K Cool White.

Image: Illustration of the lamp's stepless brightness adjustment, demonstrating light intensity from 5% to 100%.

Image: Visual representation of five distinct lighting modes (Sleeping, Nursery, Reading, Working, Leisure) available with the lamp.
Προδιαγραφές
| Πρόβλημα | Πιθανή αιτία | Διάλυμα |
|---|---|---|
| Lamp δεν ανάβει. | Δεν είναι συνδεδεμένο στην πρίζα. Διακόπτης τροφοδοσίαςtagε. ελαττωματική πρίζα. | Βεβαιωθείτε ότι το καλώδιο τροφοδοσίας είναι καλά συνδεδεμένο σε μια πρίζα που λειτουργεί. Ελέγξτε τον ασφαλειοδιακόπτη. |
| Το τηλεχειριστήριο δεν λειτουργεί. | Remote not paired; low battery; remote out of range. | Replace remote battery. Ensure remote is within 16.5ft range. Re-pair the remote as per "Remote Pairing" instructions in the Operating section. |
| Η φωτεινότητα ή η θερμοκρασία χρώματος δεν μπορούν να ρυθμιστούν. | Incorrect button usage; remote not paired. | Refer to the "Operating Instructions" for correct button functions. Re-pair the remote if necessary. |
| Lamp τρεμοπαίζει ή αναβοσβήνει. | Unstable power supply; internal connection issue. | Δοκιμάστε να συνδέσετε το lamp σε διαφορετική πρίζα. Εάν το πρόβλημα επιμένει, επικοινωνήστε με την υποστήριξη πελατών. |
Συντήρηση
To ensure the longevity and optimal performance of your BoostArea Dimmable Floor Lamp, ακολουθήστε αυτές τις απλές οδηγίες συντήρησης:
- Καθάρισμα: Αποσυνδέστε το lamp από την πηγή ρεύματος πριν τον καθαρισμό. Χρησιμοποιήστε ένα μαλακό, στεγνό πανί για να σκουπίσετε τοamp pole and head. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Αντικατάσταση λαμπτήρα: The LED light source is integrated and designed for a long lifespan (over 50,000 hours), therefore, it is not user-replaceable.
- Αποθήκευση: Εάν αποθηκεύετε το lamp για μεγάλο χρονικό διάστημα, αποσυναρμολογήστε το προσεκτικά και φυλάξτε το στην αρχική του συσκευασία σε ξηρό και δροσερό μέρος.
Αντιμετώπιση προβλημάτων
If you encounter any issues with your BoostArea Dimmable Floor Lamp, ανατρέξτε στα ακόλουθα συνηθισμένα προβλήματα και λύσεις:
| Πρόβλημα | Πιθανή αιτία | Διάλυμα |
|---|---|---|
| Lamp δεν ανάβει. | Δεν είναι συνδεδεμένο στην πρίζα. Διακόπτης τροφοδοσίαςtagε. ελαττωματική πρίζα. | Βεβαιωθείτε ότι το καλώδιο τροφοδοσίας είναι καλά συνδεδεμένο σε μια πρίζα που λειτουργεί. Ελέγξτε τον ασφαλειοδιακόπτη. |
| Το τηλεχειριστήριο δεν λειτουργεί. | Remote not paired; low battery; remote out of range. | Replace remote battery. Ensure remote is within 16.5ft range. Re-pair the remote as per "Remote Pairing" instructions in the Operating section. |
| Η φωτεινότητα ή η θερμοκρασία χρώματος δεν μπορούν να ρυθμιστούν. | Incorrect button usage; remote not paired. | Refer to the "Operating Instructions" for correct button functions. Re-pair the remote if necessary. |
| Lamp τρεμοπαίζει ή αναβοσβήνει. | Unstable power supply; internal connection issue. | Δοκιμάστε να συνδέσετε το lamp σε διαφορετική πρίζα. Εάν το πρόβλημα επιμένει, επικοινωνήστε με την υποστήριξη πελατών. |
Εγγύηση και υποστήριξη πελατών
BoostArea is committed to providing high-quality products. For information regarding warranty coverage, technical assistance, or any other inquiries, please refer to the contact information provided on your product packaging or visit the official BoostArea webτοποθεσία.
Please have your model number (24515-YK30) and purchase date available when contacting support.
