Εισαγωγή
This manual provides essential instructions for the installation, use, and maintenance of your new bread machine kneading paddle. Designed for specific KBS bread maker models, this replacement part ensures optimal dough mixing for perfect homemade bread.
Αρμονία
This kneading paddle is specifically designed for the following KBS bread machine models:
- KBS MBF-010
- KBS MBF-011
- KBS MBF-016
- KBS MBF020
- KBS MBF-020
- KBS MBF-004
- KBS MBF004
- KBS MBF013
- KBS MBF-013
- KBS MBF-013A
- KBS MBF013A
- KBS MBF-004B
- KBS MBF041
- KBS MBF-041
Important: Please verify your bread machine model number before installation to ensure proper fit and function.
Ρύθμιση και εγκατάσταση
- Unplug the Bread Machine: Ensure the bread machine is unplugged from the power outlet before handling any internal components.
- Αφαιρέστε το ταψί ψωμιού: Αφαιρέστε προσεκτικά το ταψί ψωμιού από τη μηχανή ψωμιού.
- Αφαιρέστε το παλιό κουπί (εάν υπάρχει): If replacing an existing paddle, gently pull the old paddle off the drive shaft at the bottom of the bread pan. If it's stuck, a small amount of warm water can help loosen it.
- Καθαρισμός άξονα μετάδοσης κίνησης: Clean any dough residue or debris from the drive shaft in the bread pan.
- Εγκατάσταση νέου κουπιού: Align the new kneading paddle with the drive shaft in the bread pan. Push it down firmly until it is securely seated.
- Επιστροφή ταψιού ψωμιού: Place the bread pan back into the bread machine, ensuring it is locked into position.
- Έτοιμο για χρήση: Your bread machine is now ready for operation with the new paddle.

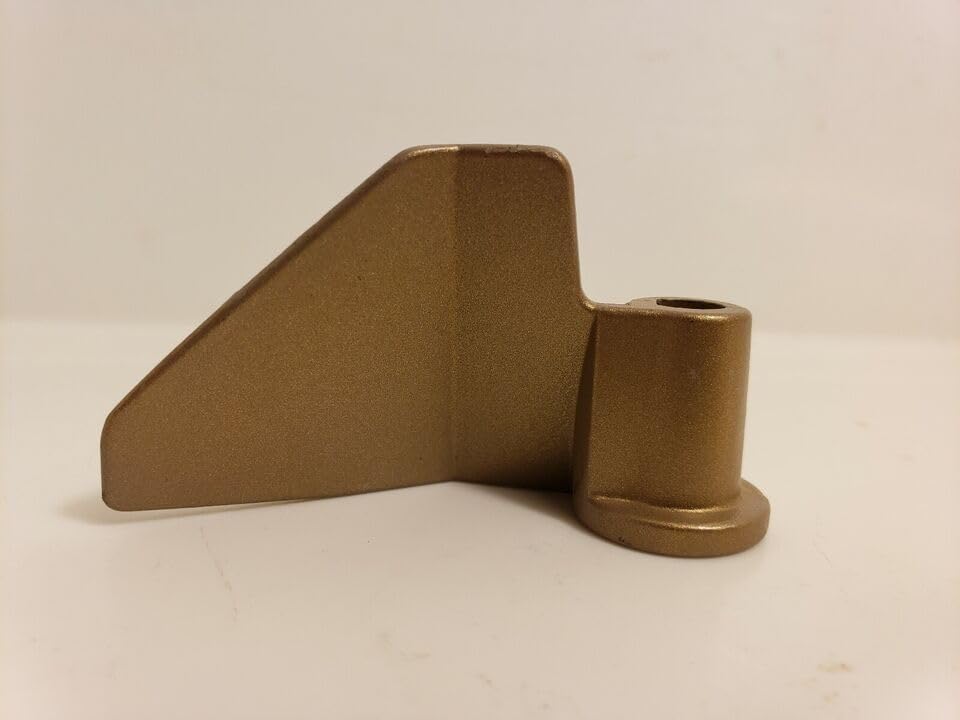

Figure 1: Kneading paddle with shaft opening.
Operating Instructions (Paddle Function)
The kneading paddle is an integral part of your bread machine's operation. Follow your bread machine's specific recipe and program instructions for best results.
- Προσθέστε Υλικά: Place ingredients into the bread pan according to your recipe, typically liquids first, then dry ingredients, with yeast added last on top of the dry ingredients.
- Επιλέξτε Πρόγραμμα: Choose the appropriate program on your bread machine (e.g., Basic, Whole Wheat, Dough). The paddle will automatically engage during the kneading cycles.
- Ζύμωμα οθόνης: The paddle will mix and knead the dough. Ensure the dough forms a smooth ball.
- Αφαίρεση πτερυγίου (Προαιρετικό): For some recipes or to avoid a hole in the finished loaf, you may remove the paddle after the final kneading cycle and before the last rise. Refer to your bread machine manual for specific timing.
Video 1: Demonstration of a universal bread maker blade mixing paddle replacement. This video shows the process of adding ingredients and the paddle mixing dough in a bread machine.
Φροντίδα και Συντήρηση
- Καθάρισμα: After each use, remove the paddle from the bread pan. Wash it with warm, soapy water and a soft sponge. Do not use abrasive cleaners or scourers, as this can damage the non-stick coating.
- Ξήρανση: Thoroughly dry the paddle before storing.
- Αποθήκευση: Store the paddle in a dry place to prevent rust or damage.
- Αντικολλητική επιφάνεια: The paddle features a non-stick surface. To prolong its life, avoid using metal utensils that could scratch the coating.

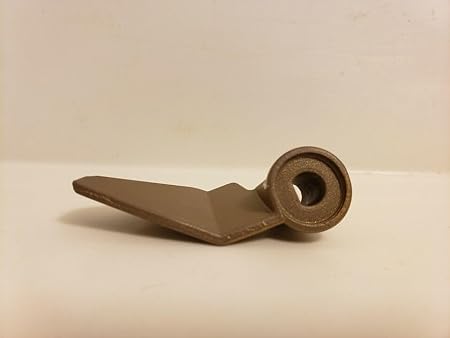

Εικόνα 2: Κορυφή view of the kneading paddle, highlighting its non-stick surface.
Αντιμετώπιση προβλημάτων
| Πρόβλημα | Πιθανή αιτία | Διάλυμα |
|---|---|---|
| Paddle does not fit the drive shaft. | Incorrect paddle model for your bread machine. | Verify your bread machine model number against the compatibility list. Ensure the paddle is designed for your specific model. |
| Dough is not mixing properly. | Paddle not securely seated; excessive dough residue on shaft. | Remove bread pan, clean drive shaft, and firmly re-seat the paddle. Ensure ingredients are added correctly. |
| Paddle is stuck in the bread pan. | Baked-on dough residue. | Fill the bread pan with warm, soapy water and let it soak for 15-30 minutes. The paddle should then be easier to remove. |
Προδιαγραφές
- Όνομα προϊόντος: Bread Machine Kneading Paddle
- Μοντέλο: Paddle (Replacement Part)
- Μάρκα: Generic (Compatible with KBS models)
- Κατασκευαστής: Paceparts
- Διαστάσεις: Περίπου 4 x 3 x 1 ίντσες
- Βάρος αντικειμένου: Περίπου 4 ουγγιές
- Υλικό: Μέταλλο με αντικολλητική επίστρωση
- Αρμονία: KBS models MBF-010, MBF-011, MBF-016, MBF020, MBF-004, MBF013, MBF-013A, MBF041, and variants.
Εγγύηση και υποστήριξη
For warranty information or technical support regarding this replacement paddle, please contact the manufacturer, Paceparts, or your original retailer. Keep your purchase receipt as proof of purchase.
