1. Εισαγωγή
This manual provides essential information for the safe and efficient use of the Generic EPW3000-12A 3000W Server Power Supply. Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the unit or connected equipment. Keep this manual for future reference.
2. Πληροφορίες Ασφάλειας
- Ηλεκτρικός κίνδυνος: This unit operates with high voltage. Do not open the power supply casinζ. Αναθέστε όλες τις εργασίες σέρβις σε εξειδικευμένο προσωπικό.
- Αερισμός: Ensure adequate airflow around the power supply. Do not block ventilation openings. Overheating can lead to malfunction or fire.
- Περιβάλλο: Install the power supply in a dry, well-ventilated area, away from direct sunlight, heat sources, and moisture.
- Γείωση: Always connect the power supply to a properly grounded electrical outlet.
- Αποσύνδεση ρεύματος: Disconnect the power cord from the wall outlet before performing any installation, maintenance, or troubleshooting.
- Αρμονία: Ensure the power supply's specifications match the requirements of your server system.
3. Το προϊόν τελείωσεview
The Generic EPW3000-12A is a high-performance 3000W server power supply designed to provide stable and reliable power to demanding server environments. It features a 12V output at 240A, making it suitable for various server configurations, including the RH5885V2. The unit incorporates an air cooling method to maintain optimal operating temperatures.

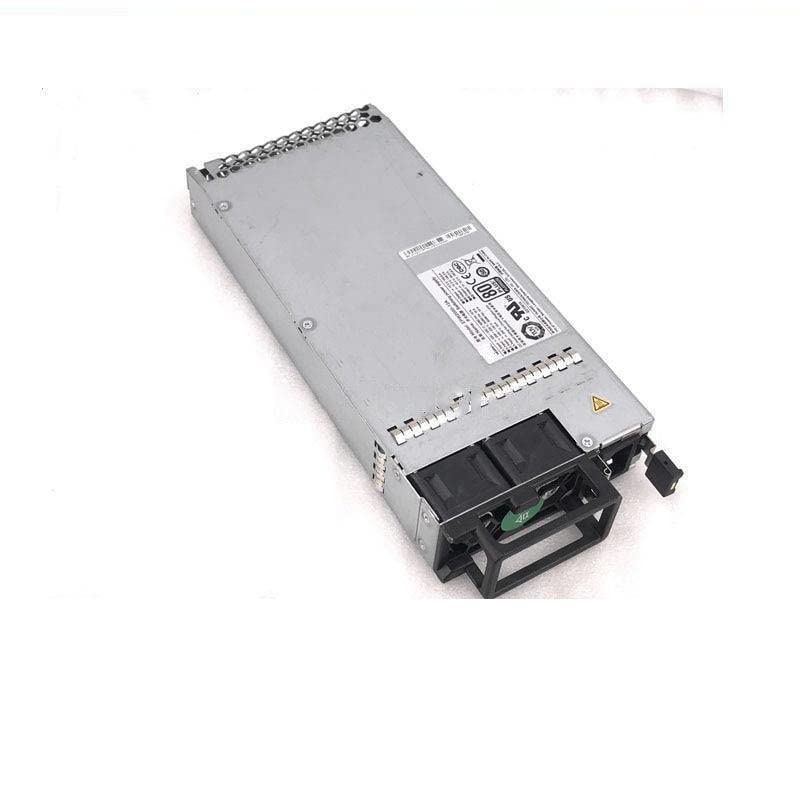

Figure 3.1: Generic EPW3000-12A 3000W Server Power Supply. This image displays the external view of the power supply unit, typically a rectangular metal enclosure with various connectors and cooling vents.
4. Ρύθμιση
- Αποσυσκευασία: Αφαιρέστε προσεκτικά το τροφοδοτικό από τη συσκευασία του. Ελέγξτε για τυχόν σημάδια ζημιάς κατά τη μεταφορά.
- Βάση: Install the power supply into the designated bay within your server chassis. Ensure it is securely fastened using appropriate screws.
- Συνδέσεις καλωδίων: Connect all necessary power cables from the power supply to the server's motherboard, CPU, and other components (e.g., hard drives, GPUs). Ensure all connections are firm and correctly oriented.
- Καλώδιο ρεύματος: Connect the AC power cord to the power supply's input port, then plug the other end into a grounded electrical outlet.
- Αρχική ενεργοποίηση: After all connections are made, power on the server. Observe for any unusual noises, smells, or error indicators.
5. Οδηγίες λειτουργίας
The EPW3000-12A power supply operates automatically once installed and connected to a power source and the server components. It provides continuous power to the server system. No user intervention is typically required during normal operation.
- Ενεργοποίηση: The power supply will activate when the server is powered on.
- Απενεργοποιώ: To power off the server and the power supply, follow the standard shutdown procedure for your server operating system, then disconnect the AC power cord if necessary for maintenance.
- Παρακολούθηση: Server management software may provide information on power supply status, voltage, and temperature. Refer to your server's documentation for details.
6. Συντήρηση
- Αφαίρεση σκόνης: Periodically inspect the power supply's fan and vents for dust accumulation. Use compressed air to gently clean dust from the cooling fins and fan blades to ensure efficient heat dissipation. Perform this with the power supply disconnected from all power sources.
- Επιθεώρηση καλωδίου: Regularly check all power cables for signs of wear, fraying, or loose connections. Replace damaged cables immediately.
- Περιβαλλοντικός Έλεγχος: Ensure the server environment remains within recommended temperature and humidity ranges to prevent stress on the power supply components.
7. Αντιμετώπιση Προβλημάτων
| Πρόβλημα | Πιθανή αιτία | Διάλυμα |
|---|---|---|
| No power to server | Loose power cable; tripped circuit breaker; faulty power supply | Check all power connections. Verify wall outlet functionality. Reset circuit breaker. If problem persists, test with a known good power supply. |
| Server shuts down unexpectedly | Overheating; power supply overload; internal fault | Ensure proper ventilation and clean dust. Verify total power draw does not exceed 3000W. If issues continue, professional diagnosis may be required. |
| Δυνατός θόρυβος ανεμιστήρα | Dust accumulation; failing fan bearing; high load/temperature | Clean fan and vents. Monitor server temperature. If noise is excessive and persistent, the fan may need replacement by a qualified technician. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, contact your seller or a qualified service technician for assistance.
8. Προδιαγραφές
- Μάρκα: Γενικός
- Μοντέλο: EPW3000-12A
- Έξοδος Wattage: 3000 Watt
- Έξοδος Τόμοςtage: 12V
- Παραγωγή Ampοργή: 240A
- Συμβατές συσκευές: Server (e.g., RH5885V2)
- Μέθοδος ψύξης: Αέρας
- ASIN: B0C3BHXNFM
- Ημερομηνία πρώτης διαθεσιμότητας: 23 Απριλίου 2023
9. Εγγύηση και υποστήριξη
For warranty information and technical support, please refer to the documentation provided by your seller or contact the manufacturer directly. Specific warranty terms and support procedures may vary depending on your region and point of purchase.
